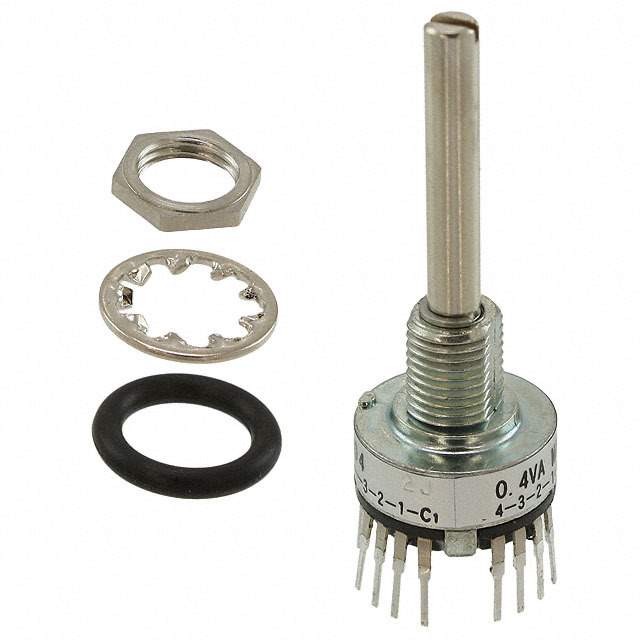

MRJE3404 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Rotary Switches
Mfr TE Connectivity ALCOSWITCH Switches
Series MRJ
Package Bulk
Number of Positions 4
Index Stops Fixed
Number of Decks 1
Number of Poles per Deck 3
Circuit per Deck 3P4T
Contact Timing Non-Shorting (BBM)
Current Rating (Amps) 0.4VA (AC/DC)
Voltage Rating - AC 20 V
Voltage Rating - DC 20 V
Actuator Type Round (3.17mm Dia), Slotted
Actuator Length 19.00mm
Angle of Throw 30°
Contact Material Nickel
Contact Finish Gold
Mounting Type Panel Mount, Through Hole
Termination Style PC Pin
Features Epoxy Sealed Terminals
Depth Behind Panel 8.13mm
Base Product Number MRJE
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.50.9020
Other Names MRJE3404-ND,1825537-3,18255373,1825537-3-ND,450-1807
Standard Package 25
Win Source Part Number 986602-MRJE3404
Ultra Librarian 3D Model Ultra Librarian MRJE3404 CAD Model

Description

The MRJE3404 is a rotary switch from TE Connectivity ALCOSWITCH Switches.

  • Number of Positions: Four
  • Contact Timing: Non-Shorting (BBM)
  • Circuit per Deck: 3P4T
  • Angle of Throw: 30°
  • Mounting Type: Panel Mount, Through-Hole
  • Voltage Rating: 20V (AC/DC)
  • Current Rating: 0.4VA (AC/DC)
