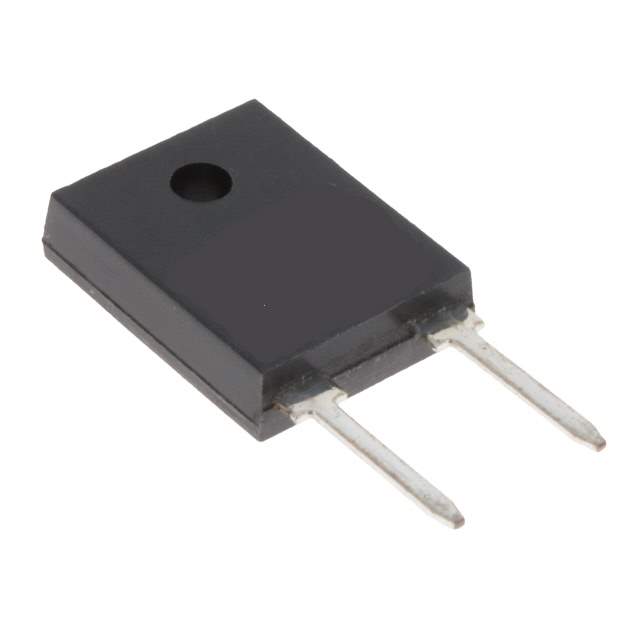

MPT100A4R7F Real Image
Same model may have multiple batches, images only for reference.

MPT100A4R7F

Part No MPT100A4R7F
Manufacturer TE Connectivity
Catalog Through Hole Resistors
Description RES 4.7 OHM 1% 100W TO220 / 4.7 Ohms ±1% 100W Through Hole Resistor TO-247-2 Non-Inductive Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series MPT, CGS
Package Tube
Resistance 4.7 Ohms
Tolerance ±1%
Power (Watts) 100W
Composition Thick Film
Features Non-Inductive
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -65°C ~ 175°C
Package / Case TO-247-2
Supplier Device Package TO-247
Dimension 0.620" L x 0.195" W (15.75mm x 4.95mm)
Height - Seated (Max) 0.965" (24.51mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.29.0000
Other Names 1712-MPT100A4R7F,3-2176429-9
Standard Package 35
Win Source Part Number 1161696-MPT100A4R7F
Ultra Librarian 3D Model Ultra Librarian MPT100A4R7F CAD Model

Description

The MPT100A4R7F resistor from TE Connectivity Passive Product comes in a tube package and has a resistance of 4.7 Ohms.

  • Package: Tube
  • Resistance: 4.7 Ohms
  • Type: Non-inductive thick film resistor
  • Power Rating: 100W
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Mounting Type: Through Hole
  • Height: 0.965" (24.51mm)
  • Standard Package: 35
  • Temperature Range: -65°C ~ 175°C
  • Alternatives: 1712-MPT100A4R7F, 3-2176429-9
