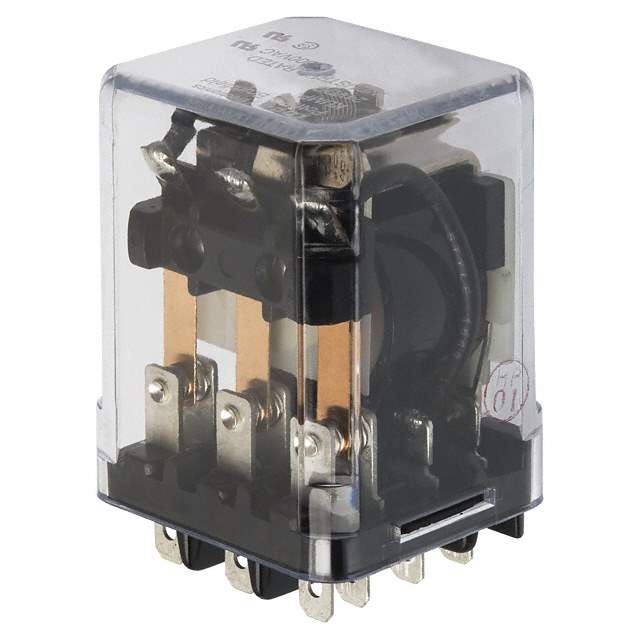

KUMP-11A18-120 Real Image
Same model may have multiple batches, images only for reference.

KUMP-11A18-120

Part No KUMP-11A18-120
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 15A 120V / General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series KUMP
Package Tray
Mounting Type Socketable
Coil Voltage 120VAC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 15 A
Switching Voltage 277VAC - Max
Coil Current 24 mA
Coil Type Non Latching
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Coil Insulation Class B
Must Operate Voltage 102 VAC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -45°C ~ 55°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 1.7 kOhms
Base Product Number KUMP-11
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0075
Other Names KUMP11A18120,PB617-NDR,6-1393116-2,PB617
Standard Package 25
Win Source Part Number 975876-KUMP-11A18-120
Ultra Librarian 3D Model Ultra Librarian KUMP-11A18-120 CAD Model

Description

The KUMP-11A18-120 is a power relay component that is designed for use in various electronic applications.

  • Contact Form: DPDT (2 Form C)
  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Coil Voltage: 120VAC
  • Contact Rating: 15A
