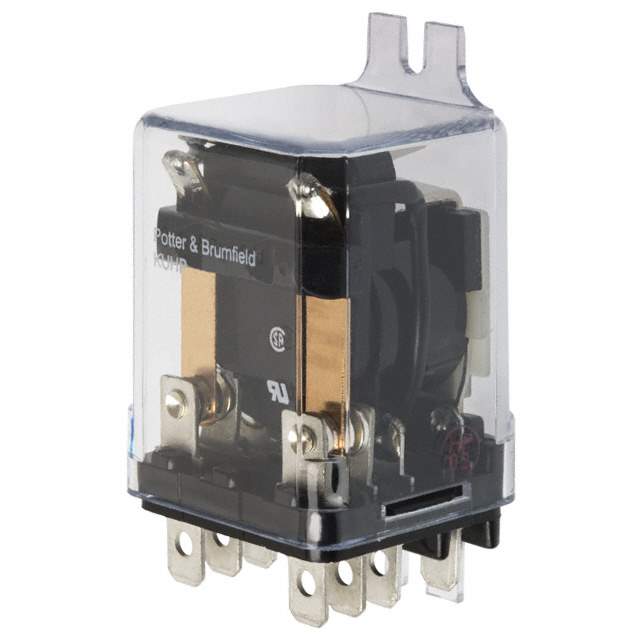

KUHP-1D51-110 Real Image
Same model may have multiple batches, images only for reference.

KUHP-1D51-110

Part No KUHP-1D51-110
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 30A 110V / General Purpose Relay SPST-NO (1 Form A) 110VDC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series KUHP
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 110VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 240VAC - Max
Coil Current 11 mA
Coil Type Non Latching
Termination Style Quick Connect - 0.250" (6.3mm)
Coil Insulation Class B
Must Operate Voltage 82.5 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -45°C ~ 70°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 10 kOhms
Base Product Number KUHP-1
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.49.0075
Other Names 6-1393114-4,KUHP-1D51-110-ND,PB2266
Standard Package 150
Win Source Part Number 1138472-KUHP-1D51-110
Ultra Librarian 3D Model Ultra Librarian KUHP-1D51-110 CAD Model

Description

The TE Connectivity Potter & Brumfield Relays KUHP-1D51-110 is a general-purpose SPST-NO (1 Form A) power relay.

  • Contact Rating: 30 A
  • Switching Voltage: 240VAC - Max
  • Coil Voltage: 110VDC
  • Coil Resistance: 10 kOhms
  • Popularity: Low
  • Fake Risk: High
  • Estimated EOL Date: Unknown
  • Temperature Range: -45°C to 70°C
  • Mounting Type: Chassis Mount
  • RoHS Compliant: Yes
