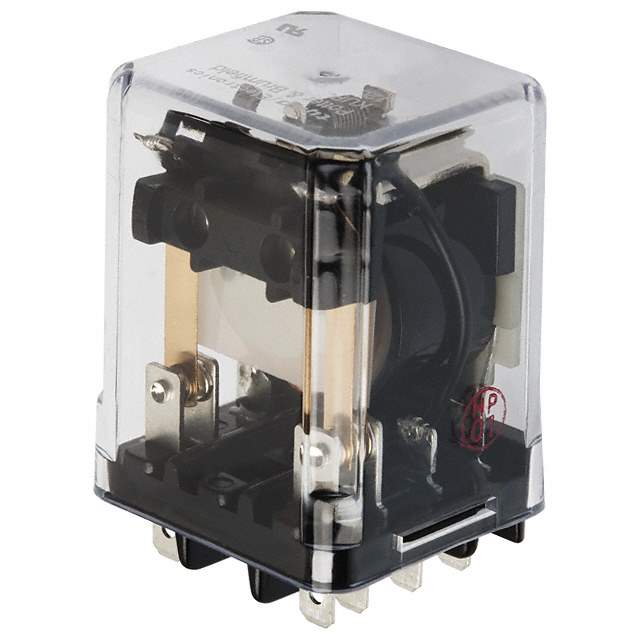

KUEP-11D15-24 Real Image
Same model may have multiple batches, images only for reference.

KUEP-11D15-24

Part No KUEP-11D15-24
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Bulk
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 75mA
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10A
Switching Voltage 150VDC - Max
Turn On Voltage (Max) 18 VDC
Operate Time 15ms
Release Time 10ms
Features Insulation - Class B
Mounting Socketable
Termination Style Plug In, Quick Connect - 0.187" (4.7mm)
Coil Power 1.8 W
Coil Resistance 320 Ohms
Temperature Range - Operating -45°C to 70°C
Win Source Part Number 040962-KUEP-11D15-24
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KUEP-11D15-24 CAD Model

Description

The KUEP-11D15-24 is a DPDT (2 Form C) relay manufactured by TE Connectivity Potter & Brumfield Relays.

  • Relay Type: socketable
  • Coil Voltage: 24VDC
  • Coil Resistance: 320 Ohms
  • Coil Current: 75mA
  • Supply and Demand Status: limited
  • Operating Temperature: designed for operating in a temperature range of -45°C to 70°C
  • Insulation Class: B
