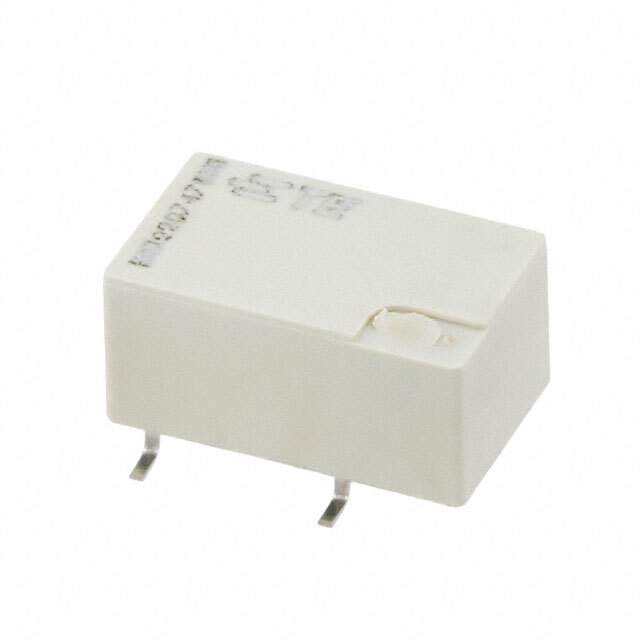

IMC03GR Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Coil Current 28.1 mA
Coil Power 140 mW
Coil Resistance 178 Ω
Coil Type Non-Latching
Coil Voltage (DC) 5 V
Contact Current Rating 2 A
Contact Material Gold, Ruthenium
Height 5.65 mm
Max Current Rating 2 A
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 220 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Pins 5
Number of Poles 1
Operate Time 3 ms
REACH SVHC Unknown
Relay Type Telecom
Release Time 3 ms
RoHS Compliant
Schedule B 8536490050
Termination Gull Wing
Throw Configuration SPDT
Width 6 mm
Win Source Part Number 1017590-IMC03GR
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian IMC03GR CAD Model

Description

This TE Connectivity relay is a telecom type non-latching relay with a maximum voltage rating of 250 VAC and 220 VDC.

  • Coil Resistance: 178 Ω
  • Coil Current: 28.1 mA
  • Coil Power: 140 mW
  • Throw Configuration: SPDT
  • Poles: one
  • Pins: five
  • Termination: gull wing and SMD/SMT
  • Contact Material: gold and ruthenium
  • Operate Time: 3 ms
  • Release Time: 3 ms
  • Height: 5.65 mm
  • Width: 6 mm
  • Category: signal relays
  • Contact Current Rating: 2 A
  • RoHS: compliant
  • Supply and Demand Status: shortage
