Same model may have multiple batches, images only for reference.

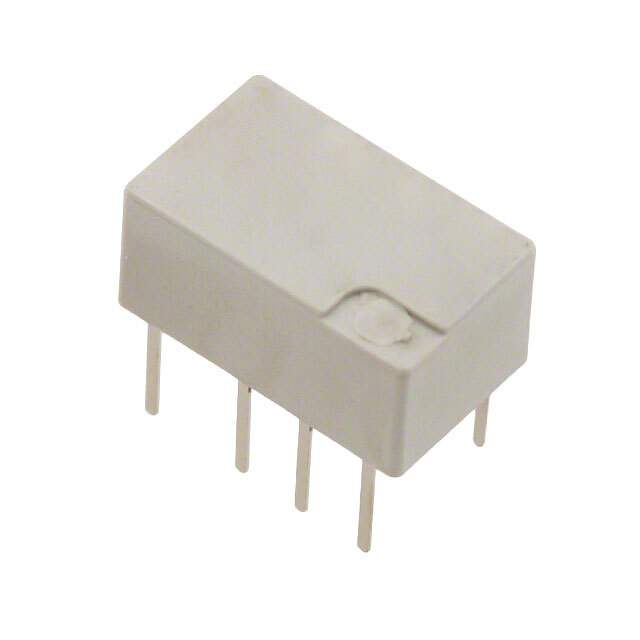

IM01TS Real Image
Same model may have multiple batches, images only for reference.

IM01TS

Part No IM01TS
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description The Best Relaytion | RELAY TELECOM DPDT 2A 3VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube
Mounting Style Through Hole
Coil Voltage 3VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 46.7mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Hermetically
Must Operate Voltage 2.25 VDC
Must Release Voltage 0.3 VDC
Operate Time 3ms
Release Time 3ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Palladium (Pd), Ruthenium (Ru), Gold (Au)
Relay Type Telecom
Coil Resistance 64 Ohms
Manufacturer Pack Quantity 1,000
MSL Level 1 (Unlimited)
Win Source Part Number 1185534-IM01TS
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IM01TS CAD Model

Description

The TE Connectivity Potter & Brumfield Relays are telecom relays with DPDT (2 Form C) contact form and a contact rating of 2A.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 2A
  • Type: sealed hermetically
  • Switching Voltage: 250VAC and 220VDC max
  • Coil Voltage: 3VDC
  • Coil Resistance: 64 Ohms
  • Coil Current: 46.7mA
  • Operate Time: 3ms
  • Release Time: 3ms
  • Mounting Type: through hole
  • Termination Style: PC pin
  • Applications: industrial, telecom, and general purpose
  • Manufacturer Pack Quantity: 1000
  • MSL Level: 1 (Unlimited)
