Same model may have multiple batches, images only for reference.

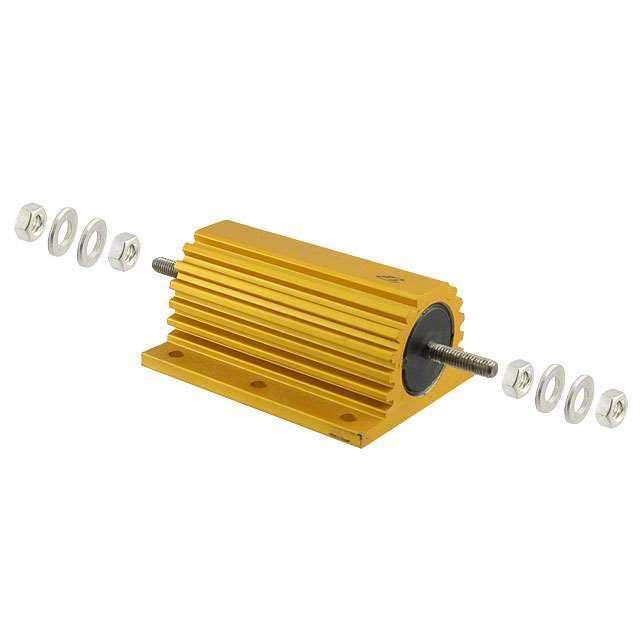

HSC2001R0J Real Image
Same model may have multiple batches, images only for reference.

HSC2001R0J

Part No HSC2001R0J
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 1 OHM 5% 200W / 1 Ohms ±5% 200W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 1 Ohms
Tolerance ±5%
Power (Watts) 200W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 3.543" L x 2.874" W (90.00mm x 73.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Lead Style Terminal Screw Type
Package / Case Axial, Box
Base Product Number HSC200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 1-1630019-0,1-1630019-0-ND,A102378,116300190
Standard Package 2
Win Source Part Number 1063523-HSC2001R0J
Ultra Librarian 3D Model Ultra Librarian HSC2001R0J CAD Model

Description

The HSC2001R0J is a wirewound composition chassis mount resistor electronic component manufactured by TE Connectivity Passive Product.

  • Resistance: 1 Ohms
  • Power (Watts): 200W
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Package: Axial, box case
  • Mounting: Flanges
  • Operating Temperature: -55°C to 200°C
  • MSL Level: Not applicable
  • REACH Status: REACH Unaffected
