Same model may have multiple batches, images only for reference.

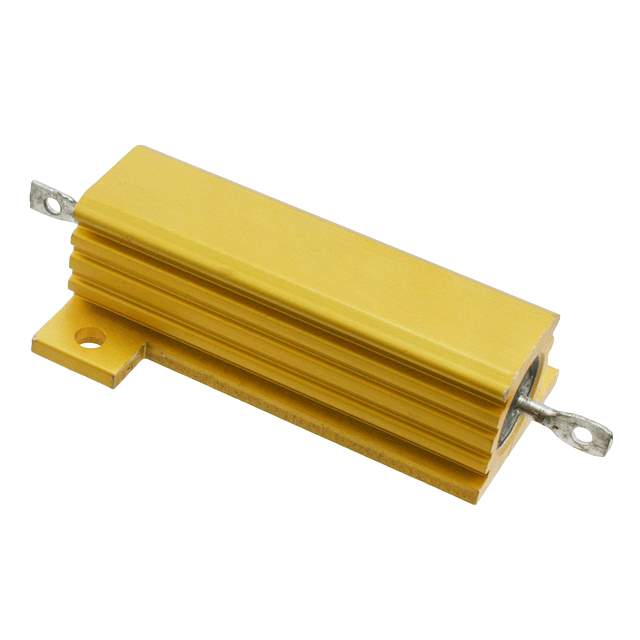

HSA5013R6J Real Image
Same model may have multiple batches, images only for reference.

HSA5013R6J

Part No HSA5013R6J
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 13.6 OHM 5% 50W / 13.6 Ohms ±5% 50W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 13.6 Ohms
Tolerance ±5%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.008" L x 1.181" W (51.00mm x 30.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number HSA50
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 4-1630186-2,A137150,HSA5013R6J-ND
Standard Package 100
Win Source Part Number 999633-HSA5013R6J
Ultra Librarian 3D Model Ultra Librarian HSA5013R6J CAD Model

Description

The HS and CGS series of resistors are chassis mount wirewound resistors from TE Connectivity Passive Product.

  • Power: 50W
  • Resistance: 13.6 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Operating Temperature Range: -55°C to 200°C
  • Package/Case: Axial, box package/case with flanges for mounting
  • Height: 0.669" (17.00mm)
  • Dimension: 2.008" L x 1.181" W (51.00mm x 30.00mm)
