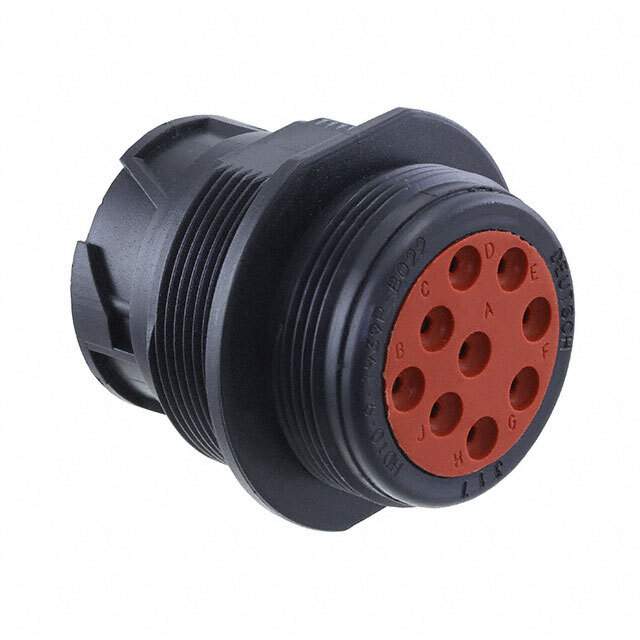

HD10-9-1939P-B022 Real Image
Same model may have multiple batches, images only for reference.

HD10-9-1939P-B022

Part No HD10-9-1939P-B022
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN RCPT HSNG MALE 9POS PNL MNT / 9 Position Circular Connector Receptacle Housing Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity Deutsch Connectors
Packaging Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 9
Shell Size - Insert 9-39
Contact Type Crimp
Contact Size 16
Mounting Panel Mount
Mounting Feature Bulkhead
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA), Nylon, Glass Filled
Housing Color Black
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Shielding Unshielded
Note Contacts Not Included; Jam Nut Not Included
Insert Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Circular
Temperature Range - Operating -40°C ~ 125°C
Base Product Number HD10
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number HD10-9-1939P-B022-ND,1734-1475,-HD10-9-1939P-B022-SI
Standard Package 200
Win Source Part Number 1334426-HD10-9-1939P-B022
Ultra Librarian 3D Model Ultra Librarian HD10-9-1939P-B022 CAD Model

Description

The TE Connectivity Deutsch Connectors HD10-9-1939P-B022 is a circular connector housing for male pins.

  • Positions: 9
  • Connector Type: receptacle housing
  • Contact Type: crimp
  • Fastening Type: bayonet lock
  • Contact Size: 16
  • Contacts Included: no
  • Jam Nut Included: no
  • Ingress Protection: IP68
  • Shielded: false
  • Material Flammability Rating: UL94 V-1
  • Orientation: keyed
  • Housing Color: black
  • Standard Package: 200
  • Mounting: panel, bulkhead
  • RoHS3 Compliant: true
  • ECCN: EAR99
