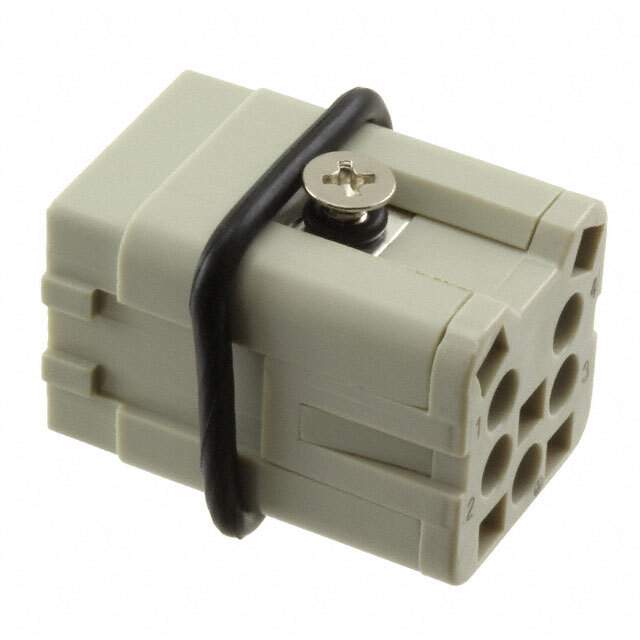

HA-004-MS Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors - Inserts, Modules
Mfr TE Connectivity AMP Connectors
Series HA
Package Bulk
Connector Type Insert
Gender Male
Number of Positions 4+Ground
Termination Style Push In
Voltage Rating 400V
Current Rating (Amps) 10A
Temperature Range - Operating -40°C ~ 125°C
Housing Material Polycarbonate (PC)
Contact Finish Silver
Material Flammability Rating UL94 V-0
Base Product Number T2010043101
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1315962-HA-004-MS
Ultra Librarian 3D Model Ultra Librarian HA-004-MS CAD Model

Description

The 1315962-HA-004-MS is a heavy-duty connector insert module manufactured by TE Connectivity AMP Connectors.

  • Product Name: 1315962-HA-004-MS
  • Manufacturer: TE Connectivity AMP Connectors
  • Connector Type: Heavy-duty connector insert module
  • Gender: Male
  • Termination Style: Push-in
  • Positions: 4+Ground
  • Housing Material: Polycarbonate (PC)
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 400V
  • Current Rating: 10A
  • Temperature Range: -40°C to 125°C
  • Contact Finish: Silver
  • Packaging: Bulk
  • ECCN: EAR99
  • MSL Level: 1
