H16B-AD-LB TE Connectivity
Same model may have multiple batches, images only for reference.

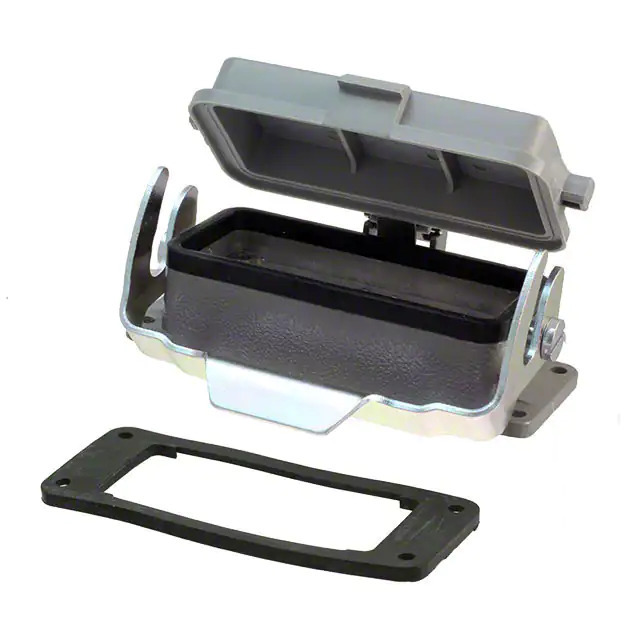

H16B-AD-LB

Part No H16B-AD-LB
Manufacturer TE Connectivity
Catalog Heavy Duty Connectors
Description CONN BASE BOTTOM ENTRY SZ16B / Base - Panel Mount Connector Bottom Entry 16B IP65 - Dust Tight, Water Resistant
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Housings, Hoods, Bases
Mfr TE Connectivity AMP Connectors
Series HB
Package Bulk
Product Status Active
Connector Type Base - Panel Mount
Style Bottom Entry
Size 16B
Lock Location Locking Clip (1) on Base Bottom
Thread Size -
Size / Dimension 4.575" L x 1.799" W x 1.165" H (116.20mm x 45.70mm x 29.60mm)
Housing Color Gray
Features Cover
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum Alloy, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number H16B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1363738-H16B-AD-LB
Ultra Librarian 3D Model Ultra Librarian H16B-AD-LB CAD Model

Description

The TE Connectivity AMP Connectors HB series heavy-duty connector housing is a reliable and durable solution for connecting heavy-duty electrical components.

  • Temperature Range: -40°C to 125°C
  • Housing Material: Aluminum Alloy Die-Cast
  • Ingress Protection: IP65
  • Entry Style: Bottom Entry
  • Base Locking: Locking Clip on Base Bottom
  • Dimensions: 4.575" L x 1.799" W x 1.165" H
  • Housing Color: Gray
  • Finish: Powder-Coated
  • Product Status: Active
  • Cover: Yes
