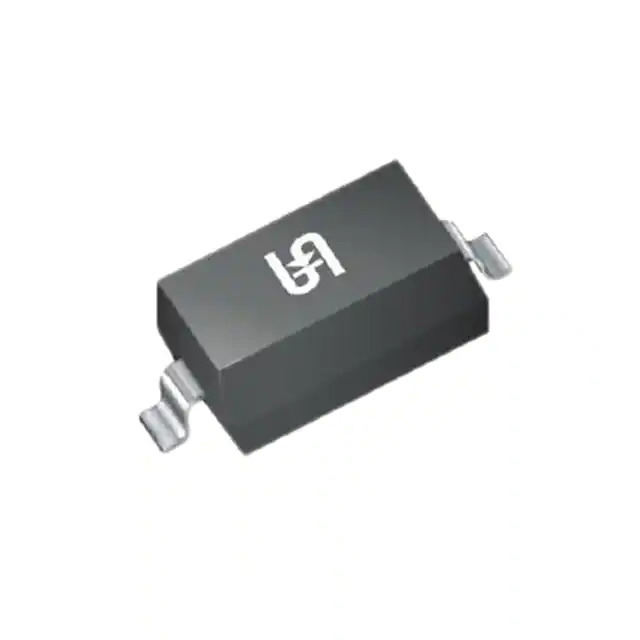

BAT54GW Taiwan Semiconductor
Same model may have multiple batches, images only for reference.

BAT54GW

Part No BAT54GW
Manufacturer Taiwan Semiconductor
Catalog Diodes, Rectifiers - Single
Description 0.1A, 30V, SCHOTTKY RECTIFIER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case SOD-123
Supplier Device Package SOD-123
Operating Temperature - Junction -55°C ~ 125°C
Base Product Number BAT54
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1377958-BAT54GW
Ultra Librarian 3D Model Ultra Librarian BAT54GW CAD Model

Description

The BAT54GW is a Schottky diode from Taiwan Semiconductor Corporation.

  • Package: SOD-123
  • Maximum Reverse Voltage (Vr): 30V
  • Average Rectified Current (Io): 100mA
  • Forward Voltage Drop (Vf): 1V @ 100mA
  • Small Signal Speed: Yes, up to 200mA
  • Reverse Recovery Time (trr): 5ns
  • Reverse Leakage Current (Ir): 2μA @ 25V
  • Capacitance: 10pF @ 1V and 1MHz
  • Temperature Range: -55°C to 125°C
  • Mounting Type: Surface Mount
  • REACH: Complies
  • ECCN: EAR99
