Products specifications Report Issue?

Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Tube
Part Status Obsolete (End Of Life)
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.114" (2.90mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.394" (10.01mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 808062-GDS04S
Ultra Librarian 3D Model Ultra Librarian GDS04S CAD Model

Description

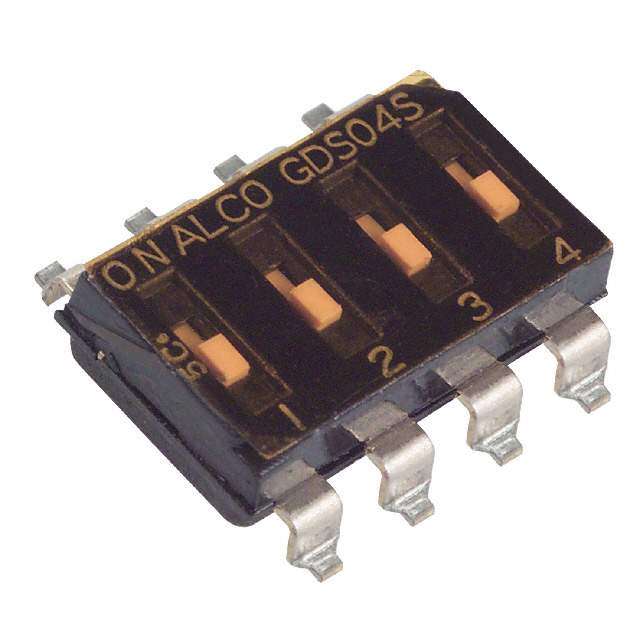

The TE Connectivity ALCOSWITCH Switches GDS04S is a 4-position slide switch with a gull-wing termination style.

  • Mounting Type: Surface Mount
  • Special Features: Tape Seal
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Status: Obsolete (End-of-Life)
  • Actuator Material: Polyphenylene Sulfide (PPS)
  • Circuit Configuration: SPST
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Supply and Demand Status: Balanced
