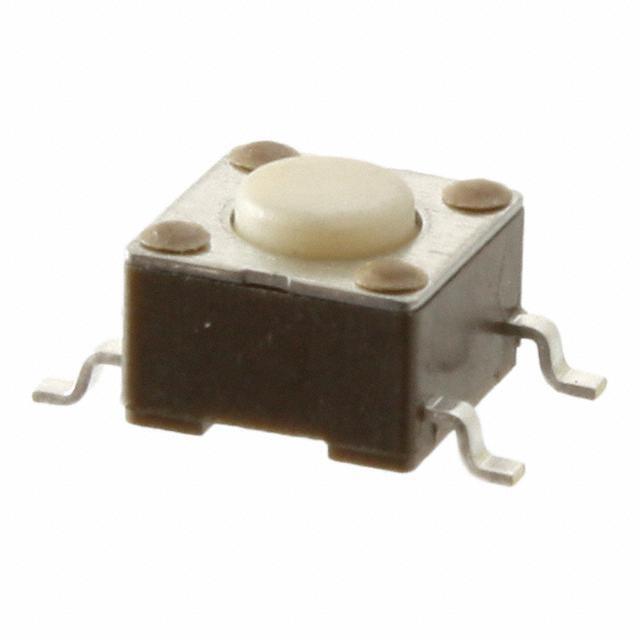

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Bag
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 260gf
Operating Temperature -40°C ~ 85°C
Ultra Librarian 3D Model Ultra Librarian FSM2JSMAA CAD Model
