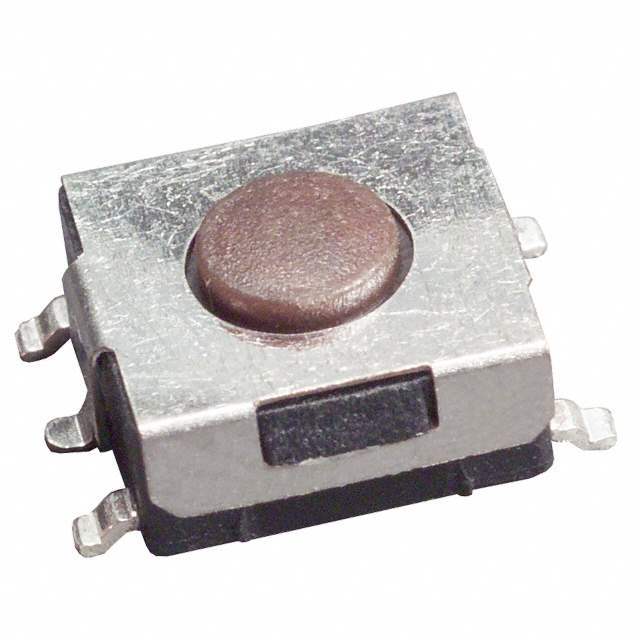

FSM1LPATR TE Connectivity ALCOSWITCH Switches
Same model may have multiple batches, images only for reference.

FSM1LPATR

Part No FSM1LPATR
Manufacturer TE Connectivity
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 24V
Datasheet
FSM1LPATR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1309779-FSM1LPATR
Manufacturer TE Connectivity ALCOSWITCH Switches
Category Switches > Tactile Switches
Part Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 24VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 3.10mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Ultra Librarian 3D Model Ultra Librarian FSM1LPATR CAD Model

Description

• Actuator Style: Round<br />• Operating Function: NO<br />• Contact Base Material: Copper Alloy • Switch Contact Plating Material: Silver<br />• Low Profile: With
