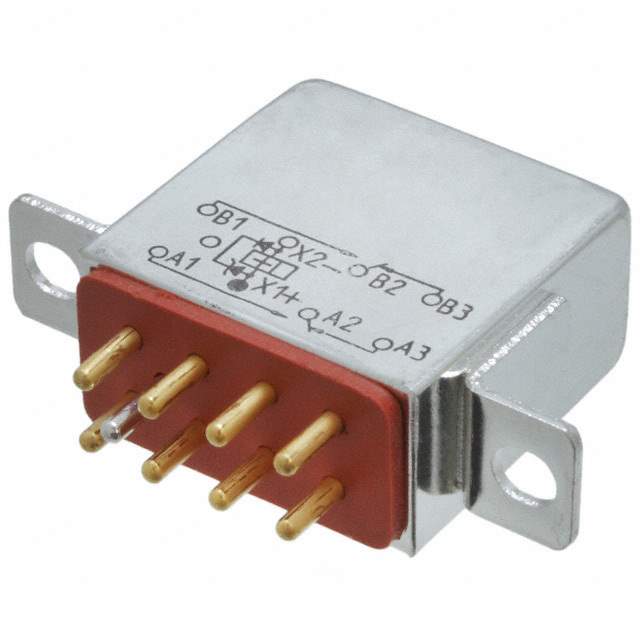

FCA-210-1024L Real Image
Same model may have multiple batches, images only for reference.

FCA-210-1024L

Part No FCA-210-1024L
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 10A 28V / General Purpose Relay DPDT (2 Form C) 28VDC Coil Chassis Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr TE Connectivity Aerospace, Defense and Marine
Series Military, MIL-R-83536/10, FCA, CII
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 28VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 10 A
Switching Voltage 115VAC, 28VDC - Max
Coil Type Non Latching
Seal Rating Sealed - Hermetically
Must Operate Voltage 18 VDC
Must Release Voltage 1.5 VDC
Operate Time 10 ms
Release Time 10 ms
Temperature Range - Operating -70°C ~ 125°C
Contact Material Silver Cadmium Oxide (AgCdO)
Relay Type General Purpose
Coil Resistance 320 Ohms
Base Product Number FCA-2
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1340959-FCA-210-1024L
Ultra Librarian 3D Model Ultra Librarian FCA-210-1024L CAD Model

Description

The 1340959-FCA-210-1024L is a DPDT (2 Form C), 28VDC, 10A power relay from TE Connectivity Aerospace, Defense and Marine.

  • Series: MIL-R-83536/10, FCA, CII
  • Seal: Sealed Hermetically
  • Coil Voltage: 28VDC
  • Coil Resistance: 320 Ohms
  • Operating Temperature: -70°C to 125°C
  • Contact Material: Silver Cadmium Oxide (AgCdO)
  • Contact Rating (Current): 10A
  • Switching Voltage: 115VAC, 28VDC - Max
  • Must Operate Voltage: 18VDC
  • Must Release Voltage: 1.5VDC
  • Mounting Type: Chassis Mount
