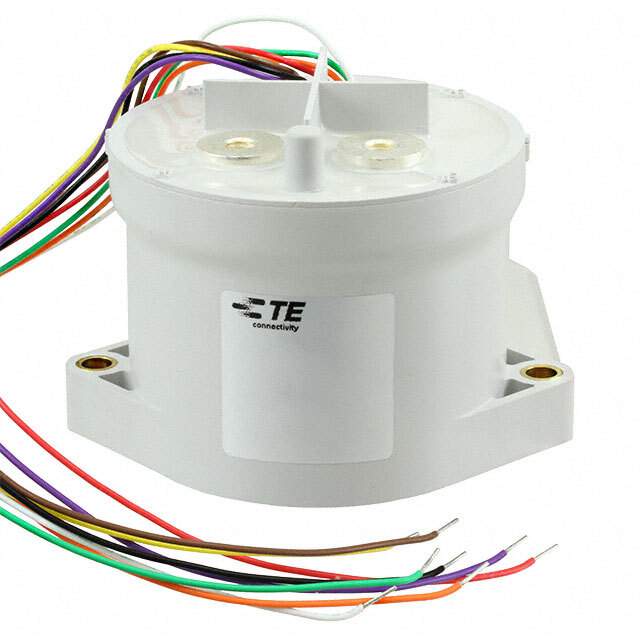

EV202ASAND Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Contactors (Electromechanical)
Mfr TE Connectivity Aerospace, Defense and Marine
Series EV202, KILOVAC
Package Bulk
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form DPST-NO (DM) (2 Form X)
Contact Rating (Current) 350 A
Switching Voltage 600VDC - Max
Features Sealed - Hermetically
Termination Style Stud, Wire Leads
Temperature Range - Operating -55°C ~ 85°C
Must Operate Voltage 16 VDC
Must Release Voltage 3 VDC
Operate Time 13 ms
Release Time 7 ms
Base Product Number EV202
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0045
Win Source Part Number 1315878-EV202ASAND
Ultra Librarian 3D Model Ultra Librarian EV202ASAND CAD Model

Description

The EV202ASAND is a DPST-NO contactor from TE Connectivity Aerospace, Defense and Marine, belonging to the Contactors (Electromechanical) category. This contactor is designed for use in a variety of electronic applications, including high-current switching and power distribution. It features a contact rating of 350A and a switching voltage of 600VDC. The EV202ASAND is a reliable and efficient solution for a range of applications.
