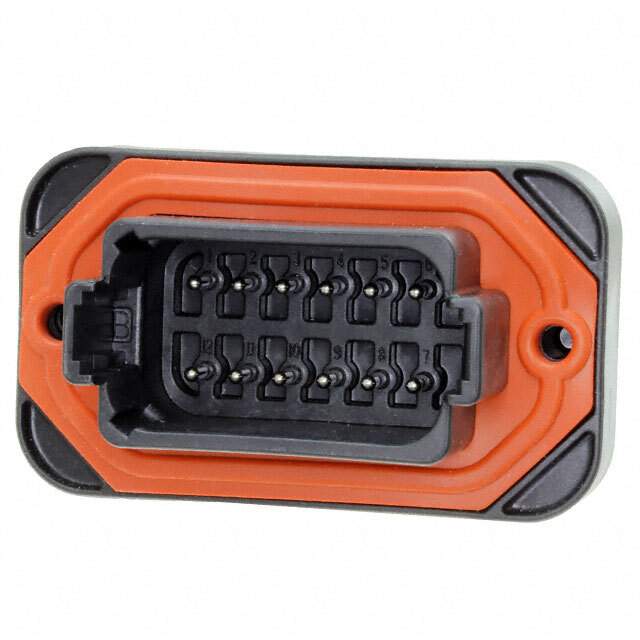

DT15-12PB Real Image
Same model may have multiple batches, images only for reference.

DT15-12PB

Part No DT15-12PB
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 12POS 4.44MM / Connector Header Panel Mount, Through Hole 12 position 0.175" (4.44mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity Deutsch Connectors
Series DT
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.175" (4.44mm)
Number of Positions 12
Number of Rows 2
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.122" (3.10mm)
Insulation Height 1.185" (30.10mm)
Contact Shape Circular
Contact Finish - Mating Nickel
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Polyamide (PA46) , Nylon 4/6, Glass Filled
Features Mounting Flange
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Voltage Rating 250VDC
Applications Automotive
Base Product Number DT15
Standard Package 25
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1339141-DT15-12PB
Ultra Librarian 3D Model Ultra Librarian DT15-12PB CAD Model

Description

The DT15-12PB is a male pin header connector from TE Connectivity Deutsch Connectors.

  • Connector Type: Header, Male Pins
  • Number of Positions: 12
  • Number of Rows: 2
  • Mounting Type: Panel Mount, Through Hole
  • Pitch - Mating: 0.175" (4.44mm)
  • Contact Material: Copper Alloy
  • Voltage Rating: 250VDC
  • Operating Temperature: -55°C ~ 125°C
  • Application: Automotive
  • Features: Shrouded - 4 Wall
  • Contact Shape: Circular
  • Contact Length - Post: 0.122" (3.10mm)
  • Insulation Height: 1.185" (30.10mm)
  • Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
  • Packaging: Bulk
  • Standard Package: 25
