Same model may have multiple batches, images only for reference.

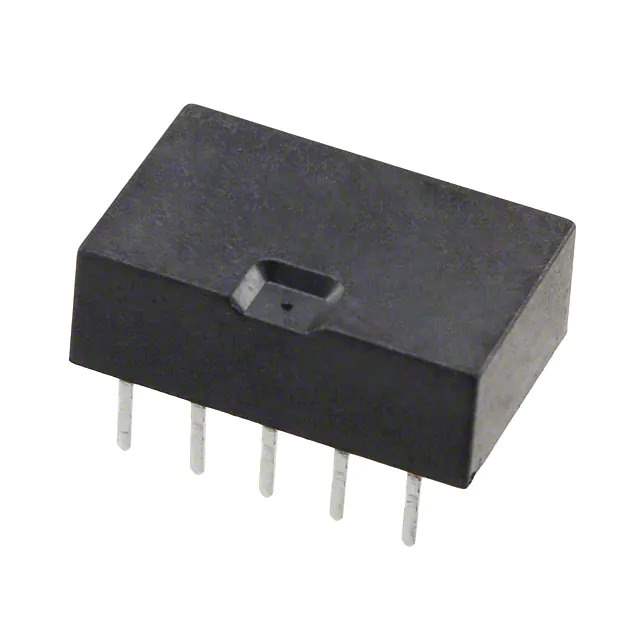

D3010 Real Image
Same model may have multiple batches, images only for reference.

D3010

Part No D3010
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM DPDT 2A 9VDC / Telecom Relay DPDT (2 Form C) Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr TE Connectivity
Series FP2, AXICOM
Package Bulk
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 9VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 2 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 15.5 mA
Coil Type Non Latching
Termination Style PC Pin
Must Operate Voltage 6.3 VDC
Must Release Voltage 0.9 VDC
Operate Time 4 ms
Release Time 3 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Palladium (Pd), Ruthenium (Ru), Gold (Au)
Relay Type Telecom
Coil Resistance 574 Ohms
Base Product Number D301
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 916654-D3010
Ultra Librarian 3D Model Ultra Librarian D3010 CAD Model

Description

The 916654-D3010 is a DPDT signal relay from TE Connectivity.

  • Termination Style: PC Pin
  • Application: Telecom
  • Coil Voltage: 9VDC
  • Coil Resistance: 574 Ohms
  • Contact Rating: 2A
  • Switching Voltage: 250VAC/220VDC
  • Operate Time: 4ms
  • Release Time: 3ms
  • Mounting: Through-Hole
  • Temperature Range: -40°C to 85°C
  • Status: Obsolete
