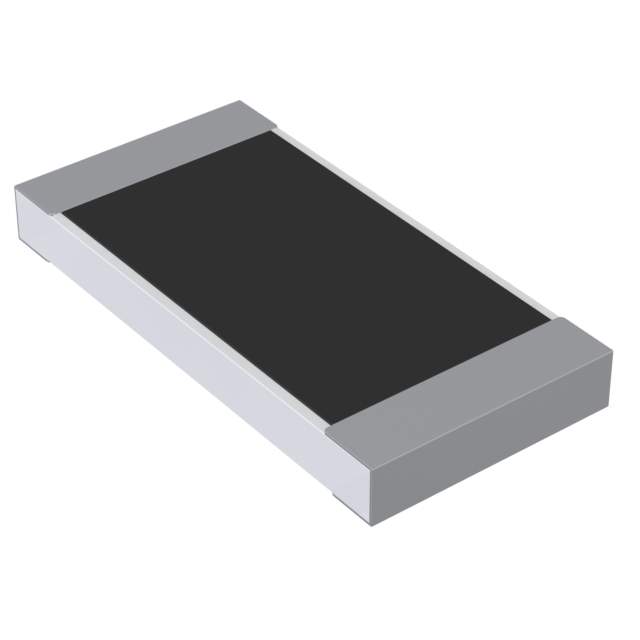

CRGH2512J820R Real Image
Same model may have multiple batches, images only for reference.

CRGH2512J820R

Part No CRGH2512J820R
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 820 OHM 5% 2W 2512 / 820 Ohms ±5% 2W Chip Resistor 2512 (6432 Metric) Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRGH, Neohm
Package Tape & Reel (TR)
Resistance 820 Ohms
Tolerance ±5%
Power (Watts) 2W
Composition Thick Film
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Number of Terminations 2
Base Product Number CRGH2512
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Other Names 7-1879501-1,7-1879501-1-ND
Standard Package 8,000
Win Source Part Number 1036095-CRGH2512J820R
Ultra Librarian 3D Model Ultra Librarian CRGH2512J820R CAD Model

Description

The CRGH2512J820R is a 2W chip resistor with a tolerance of ±5% and a temperature coefficient of ±100ppm/°C.

  • Composition: It is a thick film composition with 820 Ohms resistance and 2512 (6432 Metric) package/case.
  • Series: The device is part of the CRGH series by Neohm and is supplied by TE Connectivity Passive Product.
  • Compliance: The device is ECCN: EAR99 and has an MSL level of 1 (Unlimited).
