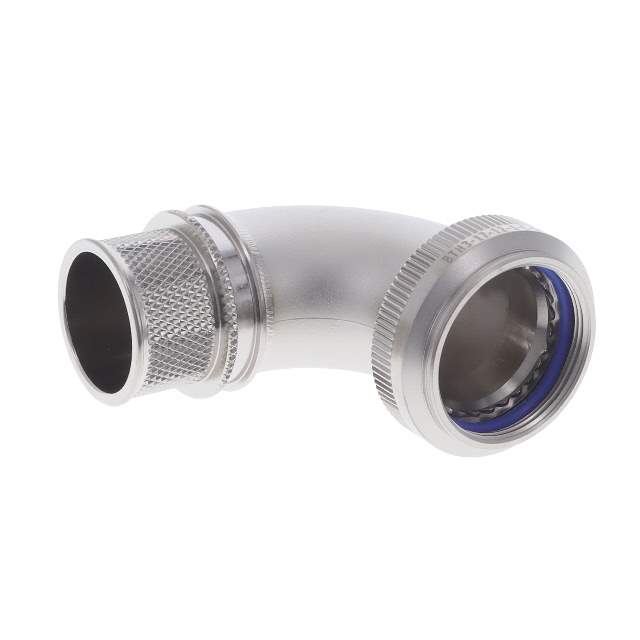

BTH3-17-12-1-C-SE Real Image
Same model may have multiple batches, images only for reference.

BTH3-17-12-1-C-SE

Part No BTH3-17-12-1-C-SE
Manufacturer TE Connectivity
Catalog Circular Connectors - Backshells and Cable Clamps
Description BANDING BACKSHELL, 90 DEG  /  Silver Connector Backshell, Banding M25x1 17
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Backshells and Cable Clamps
Mfr TE Connectivity Aerospace, Defense and Marine
Series BT, Polamco
Package Box
Type Backshell, Banding
Cable Opening 0.750" (19.05mm)
Diameter - Outside 1.280" (32.50mm)
Shell Size - Insert 17
Thread Size M25x1
Cable Exit 90°
Material Aluminum Alloy
Plating Electroless Nickel
Shielding Unshielded
Color Silver
Features Bandstrap
Includes 4 pcs - 1 Backshell, 1 Bandstrap, 1 Boot, 1 O-Ring
For Use With/Related Products MIL-DTL-38999 Series III, IV
Base Product Number BTH3
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.8180
Other Names 844-BTH3-17-12-1-C-SE,AAF1148-00
Standard Package 1
Win Source Part Number 1049831-BTH3-17-12-1-C-SE
Ultra Librarian 3D Model Ultra Librarian BTH3-17-12-1-C-SE CAD Model

Description

The BT series backshell and cable clamp is designed for use with MIL-DTL-38999 Series III and IV connectors.

  • Manufacturer: Polamco
  • Series: BT
  • Material: Aluminum alloy
  • Plating: Electroless nickel
  • Shell Size: 17
  • Cable Opening: 0.750 inches (19.05mm)
  • Diameter Outside: 1.280 inches (32.50mm)
  • Thread Size: M25x1
  • Cable Exit: 90°
  • Shielding: Unshielded
  • Color: Silver
  • Pieces Included: Backshell, bandstrap, boot, O-ring (4 pieces)
  • Package: Box
  • Ingress Protection: -
  • Material Flammability Rating: -
  • HTSUS code: 8538.90.8180
