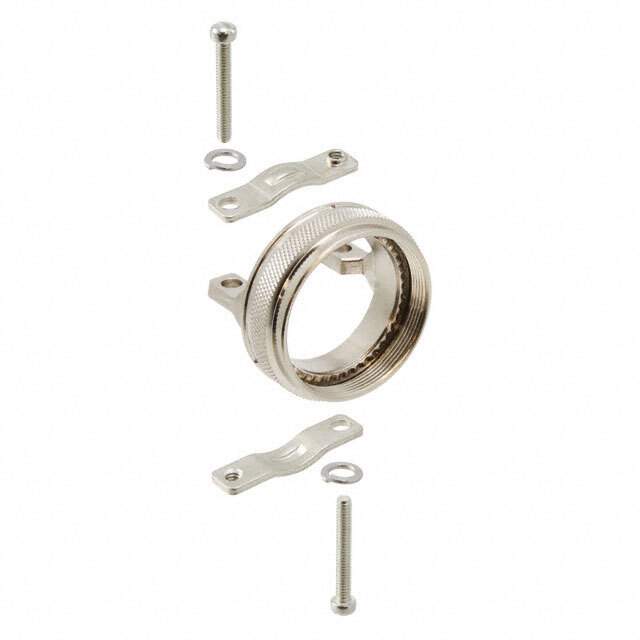

M85049/38-25N Real Image
Same model may have multiple batches, images only for reference.

M85049/38-25N

Part No M85049/38-25N
Manufacturer Amphenol PCD
Catalog Circular Connectors - Backshells and Cable Clamps
Description Strain Relief Clamp 180° 25 Shell Size / CONN CABLE CLAMP SZ 25 J SLVR
Datasheet
M85049/38-25N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol PCD
Series Military, SAE AS85049
Type Cable Clamp
Cable Opening 0.418" ~ 0.853" (10.62mm ~ 21.67mm)
Diameter - Outside 1.750" (44.45mm)
Shell Size - Insert 25, J
Cable Exit 180°
Material Aluminum Alloy
Plating Electroless Nickel
Shielding Unshielded
Color Silver
Features Strain Relief
For Use With/Related Products MIL-DTL-38999 Series III, IV
Win Source Part Number 785145-M85049/38-25N
Popularity Medium
Supply and Demand Status Limited
Family Name M85049
Introduction Date October 15, 2006
ECCN EAR99
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian M85049/38-25N CAD Model

Description

The Amphenol PCD 785145-M85049/38-25N is a cable clamp from Amphenol PCD.

  • Series: MIL-DTL-38999 Series III and IV, Military, SAE AS85049
  • Material: Aluminum Alloy with Electroless Nickel Plating
  • Cable Opening: 0.418 to 0.853 inches (10.62mm to 21.67mm)
  • Outside Diameter: 1.750 inches (44.45mm)
  • Cable Exit: 180 Degrees
  • Shielding: Unshielded
  • Product Status: Active
  • Popularity: Medium
  • Estimated EOL Date: 2026
