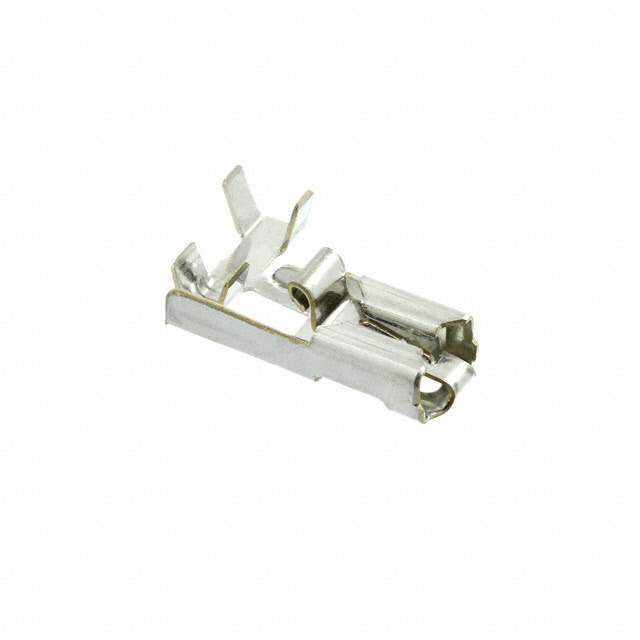

926790-4 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1209547-926790-4
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects -Terminals Quick Connects, Quick Disconnect Connectors
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Terminal Type Angled - 90°, Flag
Gender Female
Tab Width 0.250" (6.35mm)
Insulation Non-Insulated
Mounting Type Free Hanging (In-Line), Right Angle
Insulation Diameter 0.118" ~ 0.169" (3.00mm ~ 4.29mm)
Ultra Librarian 3D Model Ultra Librarian 926790-4 CAD Model

Description

0.250" (6.35mm) Quick Connect Female 13.5-17 AWG Crimp Connector Non-Insulated
