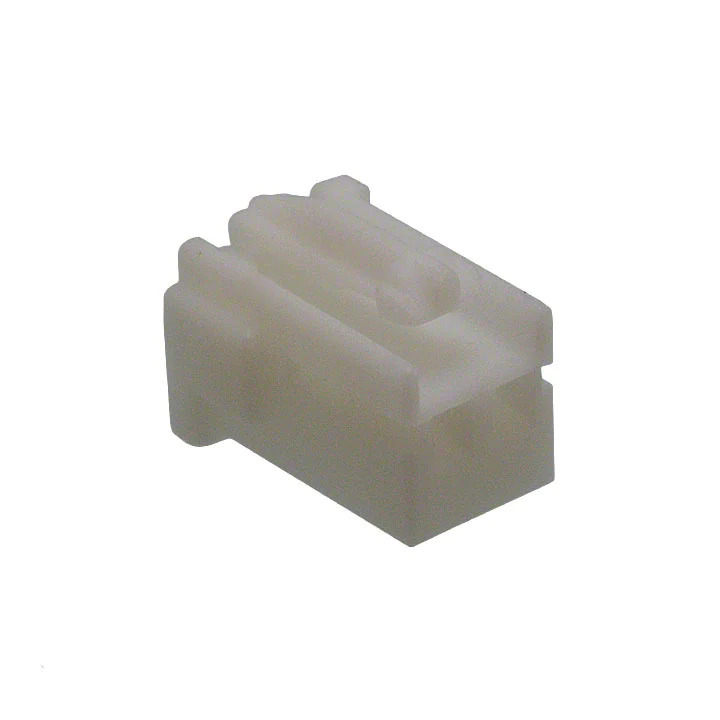

917686-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Signal Double Lock
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Female Socket
Number of Positions 2
Pitch 0.098" (2.50mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Features -
Temperature Range - Operating -30°C ~ 105°C
Note Contacts Not Included
Base Product Number 917686
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365824-917686-1
Ultra Librarian 3D Model Ultra Librarian 917686-1 CAD Model

Description

The TE Connectivity AMP Connectors Signal Double Lock is a rectangular connector housing designed for free hanging (in-line) installation. It is a plug connector with 2 positions and 1 row, featuring crimp contact termination.

  • Mounting Type: Free Hanging (In-Line)
  • Connector Type: Plug
  • Number of Positions: 2
  • Number of Rows: 1
  • Termination: Crimp
  • Color: Natural
  • Pitch: 0.098" (2.50mm)
  • Contacts Included: No
  • Operating Temperature: -30°C to 105°C
  • Series: Signal Double Lock
  • Packaging: Bulk
