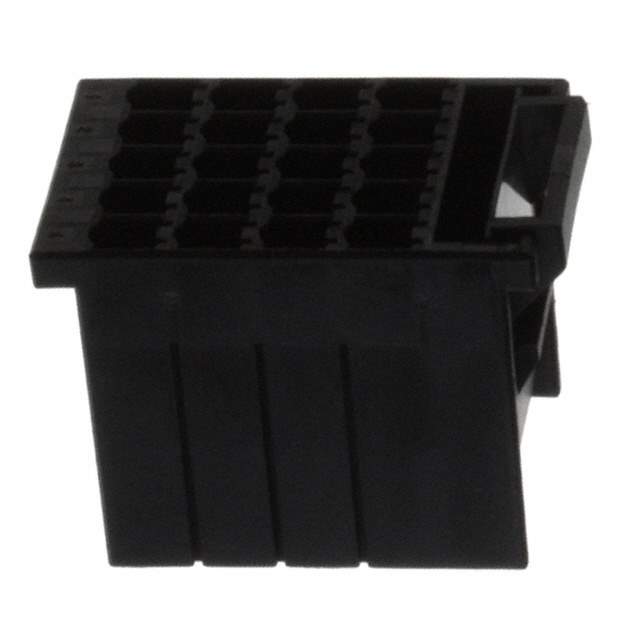

917249-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Series Dynamic D-3400
Packaging Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 20
Pitch 0.150" (3.81mm)
Number of Rows 4
Row Spacing 0.200" (5.08mm)
Mounting Free Hanging (In-Line)
Contact Termination Crimp
Color Black
Note Contacts Not Included
Win Source Part Number 766466-917249-1
Popularity Medium
Supply and Demand Status Limited
Family Name 917249
Introduction Date July 01, 2004
ECCN EAR99
Country of Origin Japan
Halogen Free Not Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 917249-1 CAD Model

Description

The TE Connectivity AMP Connectors 766466-917249-1 is a Dynamic D-3400 series connector manufactured by TE Connectivity AMP Connectors.

  • Color: Black
  • Positions: 20
  • Type: Receptacle
  • Contact Type: Female Socket
  • Row Spacing: 0.200" (5.08mm)
  • Pitch: 0.150" (3.81mm)
  • Mounting: Free Hanging (in-line)
  • RoHS Compliance: Non-compliant
  • Popularity: Medium
  • Supply/Demand Status: Limited
