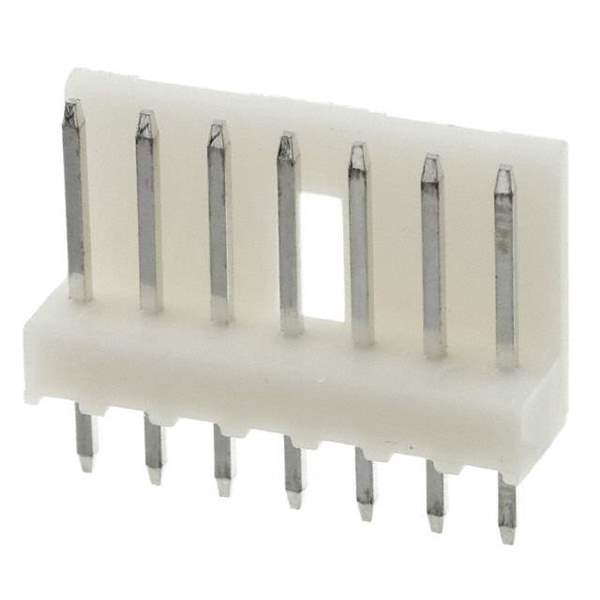

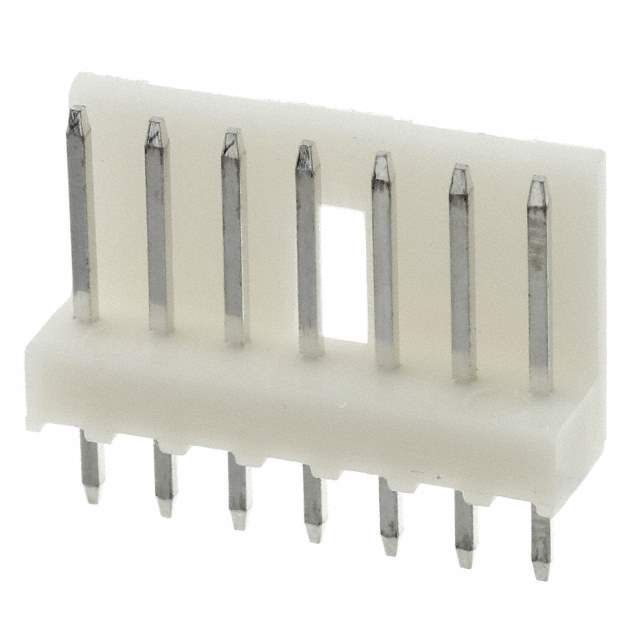

171825-7 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series EI
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.098" (2.50mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 1 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.295" (7.49mm)
Contact Length - Post 0.142" (3.60mm)
Overall Contact Length 0.551" (14.00mm)
Insulation Height 0.409" (10.40mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 31.5µin (0.80µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA66), Nylon 6/6
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 2A
Voltage Rating 250VAC, 350VDC
Contact Finish Thickness - Post 31.5µin (0.80µm)
Applications General Purpose
Base Product Number 171825
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names 2266-171825-7,-171825-7-SI,A112639,171825-7-ND
Standard Package 500
Win Source Part Number 1034947-171825-7
Ultra Librarian 3D Model Ultra Librarian 171825-7 CAD Model

Description

The TE Connectivity AMP Connectors 171825 is a board to cable/wire connector designed for use in electronic circuits.

  • Pitch Mating: 0.098" (2.50mm)
  • Mounting Type: Through Hole
  • Shrouded: Shrouded - 1 Wall
  • Insulation Color: Natural
  • Contact Finish - Mating: Tin with a thickness of 31.5µin (0.80µm)
  • Voltage Rating: 250VAC, 350VDC
  • Current Rating: 2A
  • Insulation Material: Polyamide (PA66), Nylon 6/6
  • Temperature Range: -
  • Packaging: Bulk
  • Standard Package: 500
