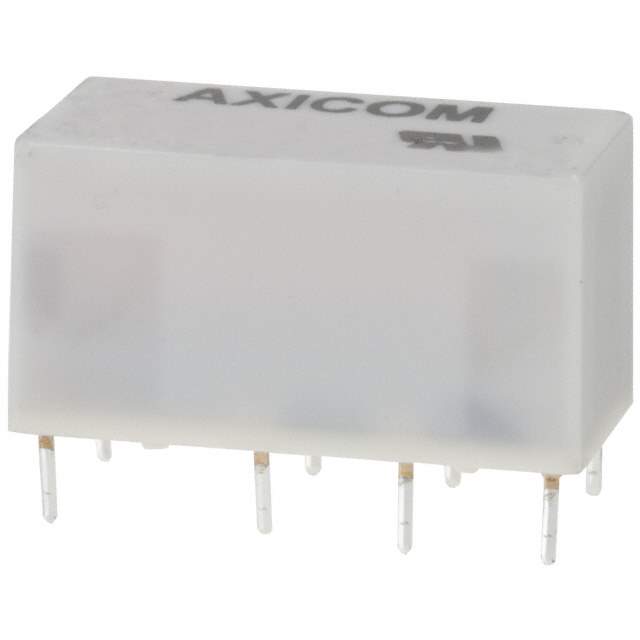

9-1393792-0 Real Image
Same model may have multiple batches, images only for reference.

9-1393792-0

Part No 9-1393792-0
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description Electromechanical Relay 24VDC 694Ohm 3A DPDT (29x13x25.5)mm THT Power Relay
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Ambient Temperature Range High 85 °C
Mounting SMD (SMT)
Case / Package DIP
Coil Current 6.2 mA
Coil Power 150 mW
Coil Resistance 3.84 kΩ
Coil Type Non-Latching
Coil Voltage (AC) 24 V
Coil Voltage (DC) 24 V
Contact Current Rating 3 A
Contact Material Gold, Silver
Contact Plating Gold
Contact Resistance 100 mΩ
Current Rating 3 A
Depth 10 mm
ELV Compliant
Height 10.9 mm
Lead Free Yes
Length 20.2 mm
Max Current Rating 3 A
Maximum Operating Temperature 85 °C
Max Power Dissipation 150 mW
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 220 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Contacts 2
Number of Pins 8
Operate Time 5 ms
Power Consumption 150 mW
Radiation Hardening No
Ratings IP67
REACH SVHC Unknown
RoHS Compliant
Schedule B 8536490050, 8536490075
Switching Current 3 A
Termination PC Pin
Throw Configuration DPDT
Voltage Rating (AC) 250 V
Voltage Rating (DC) 220 V
Width 10 mm
Win Source Part Number 1042215-9-1393792-0
Categories Signal Relays,Up to 2 Amps
Manufacturer TE Connectivity
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 9-1393792-0 CAD Model

Description

The 1042215-9-1393792-0 is a 2-contact signal relay manufactured by TE Connectivity.

  • Termination: PC Pin
  • Mounting: SMD
  • Contact Material: Gold and Silver
  • Current Rating: 3A
  • Coil Resistance: 3.84 kΩ
  • Coil Current: 6.2 mA
  • Relay Type: Non-Latching
  • Operate Time: 5 ms
  • Coil Power: 150 mW
  • Width: 10 mm
  • Length: 20.2 mm
  • Height: 10.9 mm
  • Throw Configuration: DPDT
  • Contact Current Rating: 3A
  • Maximum Voltage: 250V AC and 220V DC
  • RoHS Compliant: Yes
  • Radiation Hardening: No
  • Operating Temperature: -40 °C to 85 °C
