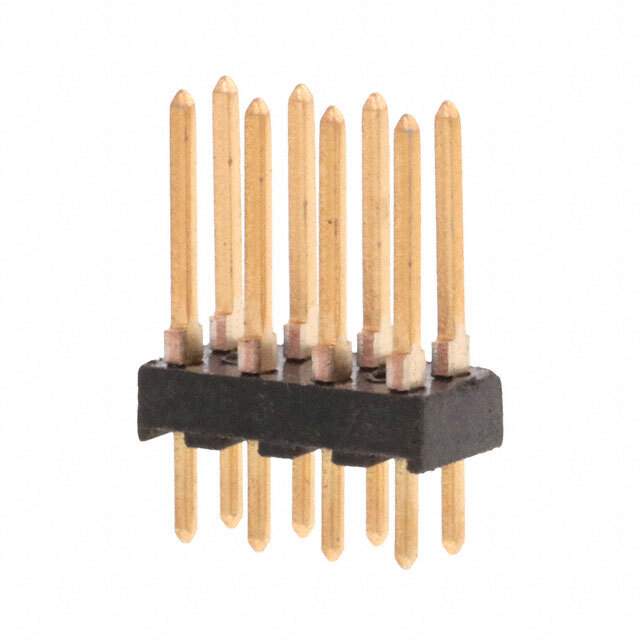

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity AMP Connectors
Series AMPMODU Mod II
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 8
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.318" (8.08mm)
Contact Length - Post 0.125" (3.18mm)
Overall Contact Length 0.533" (13.55mm)
Insulation Height 0.090" (2.29mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Thermoplastic
Temperature Range - Operating -65°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Contact Finish Thickness - Post Flash
Base Product Number 87227
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 872274,87227-4-ND,A26571
Standard Package 200
Win Source Part Number 1219920-87227-4
Ultra Librarian 3D Model Ultra Librarian 87227-4 CAD Model

Description

The TE Connectivity AMP Connectors 87227-4 is a male pin header connector with 8 positions loaded.

  • Positions Loaded: 8
  • Fastening Type: Push-Pull
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Contact Shape: Circular
  • Mounting Type: Through-Hole
  • Shrouded: Unshrouded
  • Row Spacing: 0.100 inches
  • Temperature Range: -65°C to 105°C
  • Current Rating: 3A
  • AEC-Q200: Rated
