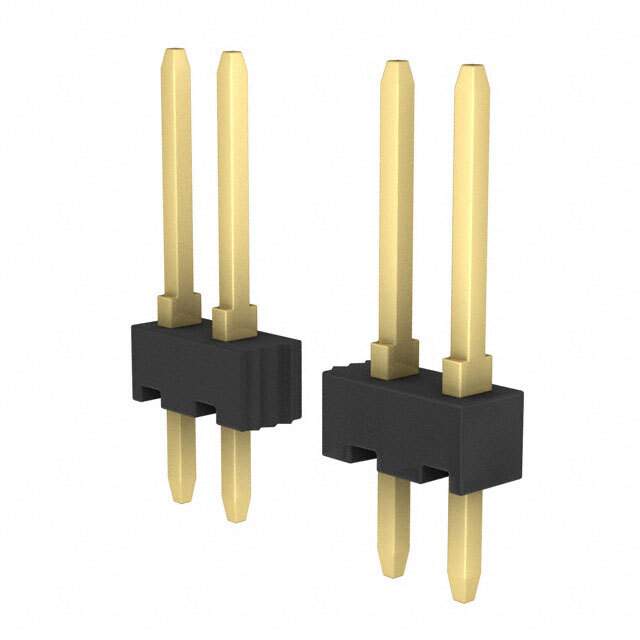

Same model may have multiple batches, images only for reference.

87220-6

Name: 87220-6
Brand: TE Connectivity
SKU: 1024088
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	87220-6
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 6POS 2.54MM / Connector Header Through Hole 6 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	TE Connectivity AMP Connectors
Series	AMPMODU Mod II
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.318" (8.08mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.533" (13.55mm)
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic
Temperature Range - Operating	-65°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Contact Finish Thickness - Post	Flash
Base Product Number	87220
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	-87220-6-SI,872206,A26550
Standard Package	240
Win Source Part Number	1024088-87220-6
Ultra Librarian 3D Model	Ultra Librarian 87220-6 CAD Model

Description

The TE Connectivity AMP Connectors 1024088-87220-6 is a male pin header connector suitable for use in electronic devices. TE Connectivity AMP Connectors.

Pitch-Mating: 0.100" (2.54mm)
Current Rating: 3A
Mounting Type: Through Hole
Packaging: Bulk
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 30.0µin (0.76µm)
Temperature Range: -65°C to 105°C
REACH Affected: Yes
Connection Type: Board-to-Board or Cable
