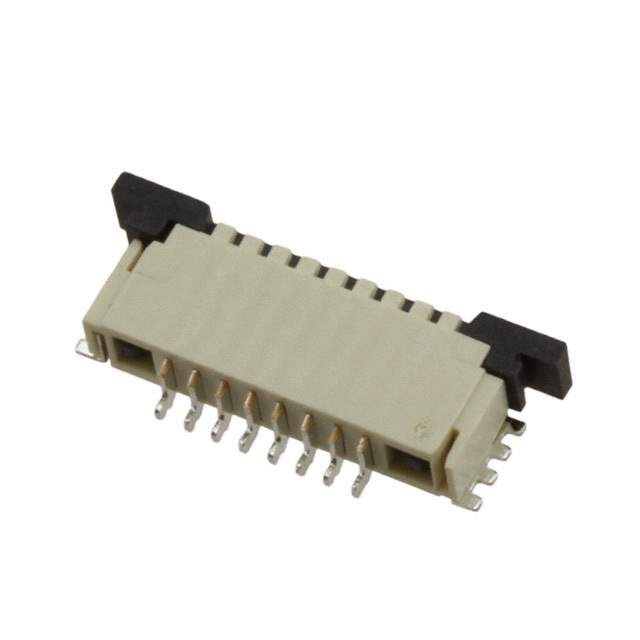

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Reel
Flat Flex Type FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 8
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.101" (2.56mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin
Dielectric Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 200V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness 78.7μin (2.00μm)
Housing Color Natural
Actuator Color Black
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1133974-84953-8
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 84953-8 CAD Model

Description

The 1133974-84953-8 is a right-angle surface-mount connector manufactured by TE Connectivity AMP Connectors.

  • Positions: 8
  • Pitch: 0.039" (1.00mm)
  • Locking Feature: Slide Lock
  • Temperature Range: -40°C to 85°C
  • Applications: Connectors and Interconnects
  • Supply and Demand: Limited
  • Material: Polyamide (PA) and Nylon, Glass-Filled Actuator
  • Housing Color: Natural
