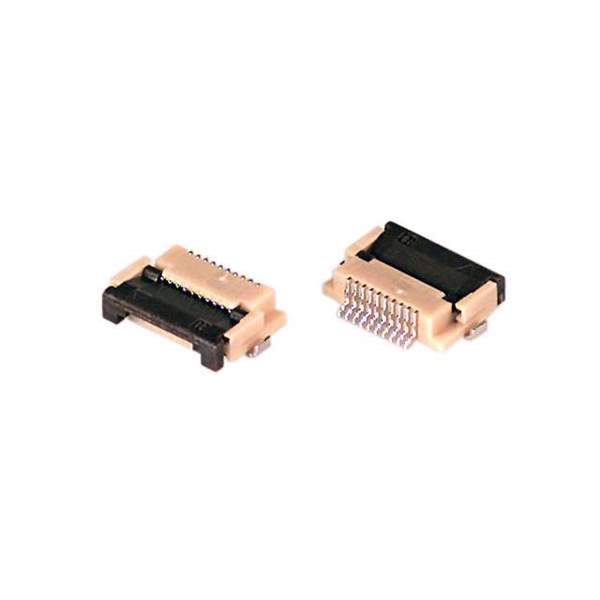

The FH12-10S-0.5SH electronic component is manufactured by Hirose Electric Co Ltd and is an obsolete product.

• Type: Zero Insertion Force (ZIF) Connector
• Positions: 10
• Pitch: 0.020 inches (0.50mm)
• Mounting Style: SMT, Right Angle
• Termination: Solder
• Contact Finish: Tin-Lead
• Contact Material: Phosphor Bronze
• Voltage Rating: 50V
• Height Above Board: 0.079 inches (2.00mm)
• Flat Flex Type: FFC, FPC
• Connector/Contact Type: Contacts, Bottom
• FFC, FCB Thickness: 0.30mm
• Locking Feature: Flip Lock
• Cable End Type: Straight
• Actuator Material: Polyphenylene Sulfide (PPS)
• Material Flammability Rating: UL94 V-0
• Housing Color: Beige
• Dielectric Material: Polyamide (PA), Nylon
• Mating Cycles: 20
• Operating Temperature: -40 degrees Celsius to 85 degrees Celsius
• Actuator Color: Brown
