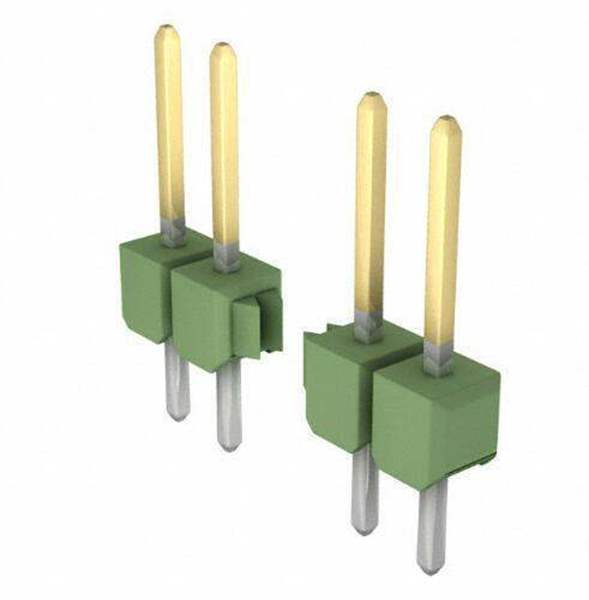

826646-6 TE Connectivity AMP Connectors
Same model may have multiple batches, images only for reference.

826646-6

Part No 826646-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER VERT 6POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer TE Connectivity AMP Connectors
Category Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Packaging  Bulk
Part Status Active
Connector Type Header, Breakaway
Contact Type Male Pin
Mounting Type Through Hole
Contact Length - Mating 0.228" (5.80mm)
Contact Length - Post 0.126" (3.20mm)
Overall Contact Length 0.465" (11.81mm)
Insulation Height 0.110" (2.79mm)
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Win Source Part Number WS1304367-826646-6
Ultra Librarian 3D Model Ultra Librarian 826646-6 CAD Model

Description

Connector Header Through Hole 6 position 0.100" (2.54mm)
