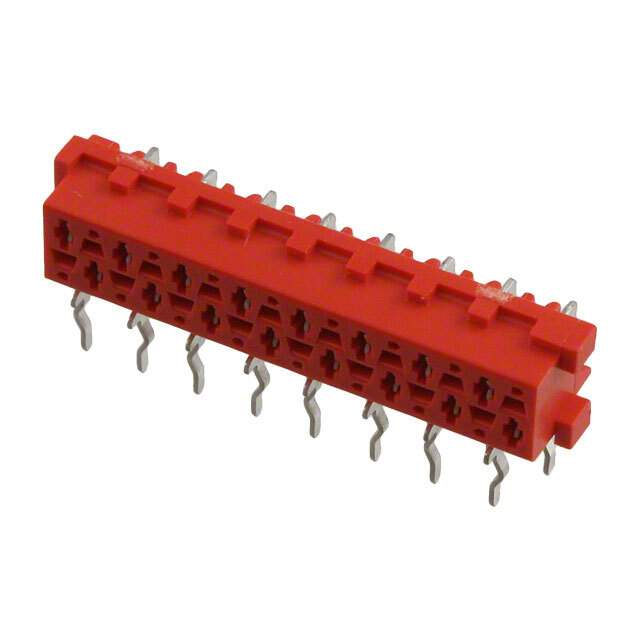

8-215460-6 Real Image
Same model may have multiple batches, images only for reference.

8-215460-6

Part No 8-215460-6
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN RCPT 16POS 0.1 TIN PCB R/A / 16 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 16
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Through Hole, Right Angle
Termination Kinked Pin, Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Red
Insulation Height 0.228" (5.80mm)
Contact Length - Post 0.122" (3.10mm)
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Voltage Rating 100VDC
Applications Automotive, General Purpose
Insulation Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material Phosphor Bronze
Base Product Number 215460
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number A99450TR,A99450CT,82154606
Standard Package 250
Win Source Part Number 1332082-8-215460-6
Ultra Librarian 3D Model Ultra Librarian 8-215460-6 CAD Model

Description

The TE Connectivity AMP Connectors 1332082-8-215460-6 is a 16-position receptacle connector with a forked contact type.

  • Positions: 16
  • Contact Type: Forked
  • Applications: Automotive and General Purpose
  • Voltage Rating: 100VDC
  • Insulation Material: Polybutylene Terephthalate (PBT), Polyester, Glass-Filled
  • Mounting: Through Hole or Right Angle
  • Pitch-Mating: 0.100" (2.54mm)
  • Contact Finish: Tin
  • Insulation Color: Red
