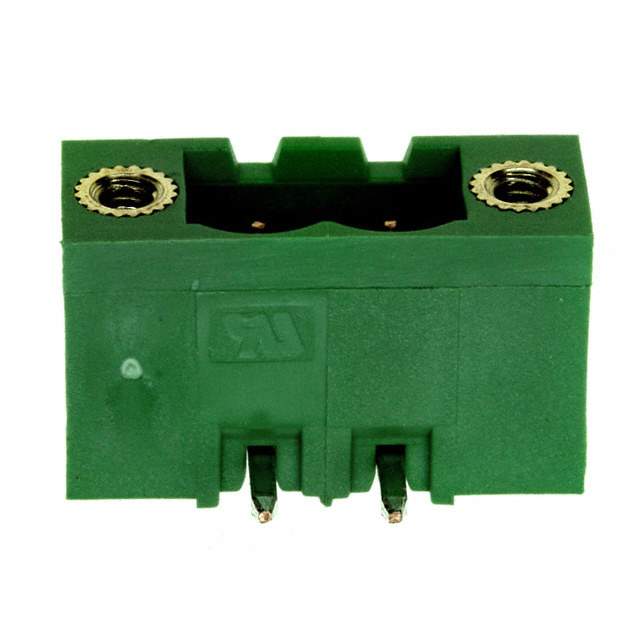

796864-2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 40 Weeks
Features 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle - Through Hole
Manufacturer TE Connectivity
Series Buchanan
Package Bulk
Operating Temperature Range -40°C ~ 110°C
Mounting Through Hole
Family Name 796864
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 2266-796864-2, A98296, 7968642
Quantity per package 300
Popularity High
Supply and Demand Status Balance
Win Source Part Number 908456-796864-2
Ultra Librarian 3D Model Ultra Librarian 796864-2 CAD Model

Description

The 908456-796864-2 is a product from TE Connectivity.

  • Description: 2-Position Terminal Block Header
  • Pins: Male
  • Shrouded: Shrouded (4 Side)
  • Pin Spacing: 0.197" (5.00mm)
  • Orientation: 90° Right Angle
  • Mounting: Through Hole
  • Operating Temperature: -40°C to 110°C
  • Packaging: Bulk
  • Series: Buchanan
  • Mounting Technology: Through-Hole
  • Popularity: High
  • Supply and Demand: Balanced
