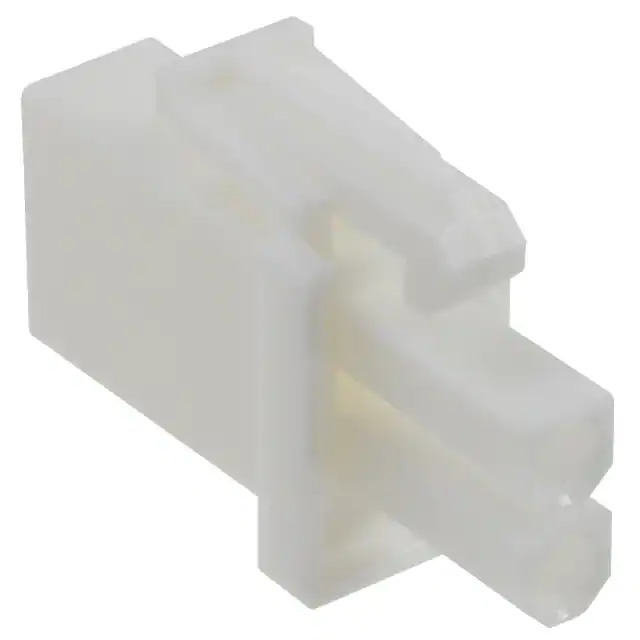

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Bulk
Product Status Active
Connector Type Plug
Contact Type Male or Female
Number of Positions 2
Pitch -
Number of Rows 2
Row Spacing 0.163" (4.14mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Friction Lock
Color Natural
Features -
Temperature Range - Operating -40°C ~ 90°C
Note Contacts Not Included
Base Product Number 794894
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365496-794894-1
Ultra Librarian 3D Model Ultra Librarian 794894-1 CAD Model

Description

The TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK is a rectangular connector housing designed for plug connectors.

  • Mounting Type: Free Hanging (In-Line)
  • Fastening Type: Friction Lock
  • Color: Natural
  • Positions: 2
  • Rows: 2
  • Contact Type: Male or Female
  • Temperature Range: -40°C to 90°C
