Same model may have multiple batches, images only for reference.

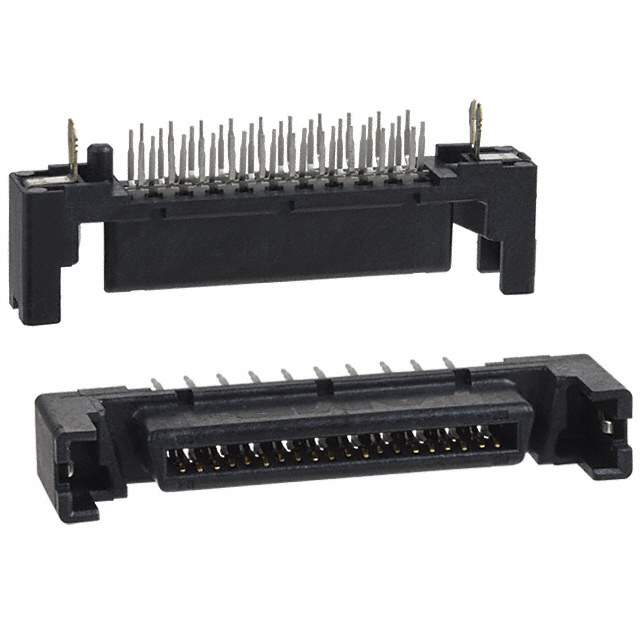

787317-4 Real Image
Same model may have multiple batches, images only for reference.

787317-4

Part No 787317-4
Manufacturer TE Connectivity
Catalog D - SUB, D - SHAPED connectors
Description CONN SCA-2 RCPT 40POS VERT SLDR / 40 Position Receptacle Connector SCA-2 Through Hole Solder
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - Centronics Connectors
Mfr TE Connectivity AMP Connectors
Series CHAMP .050 I
Package Tube
Connector Style Outer Shroud Contacts
Connector Type Receptacle
Number of Positions 40
Number of Rows 2
Mounting Type Through Hole
Termination Solder
Type SCA-2
Features Board Guide, Board Lock
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 787317
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351013-787317-4
Ultra Librarian 3D Model Ultra Librarian 787317-4 CAD Model

Description

The CHAMP .050 I SCA-2 Centronics connector is a receptacle designed for use in a variety of electronic devices from TE Connectivity AMP Connectors.

  • Number of Positions: 40
  • Connector Type: Outer Shroud Contacts
  • Packaging: Tubes
  • Standard Package: 50
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Component Status: Active
  • Features: Board Guide, Board Lock
