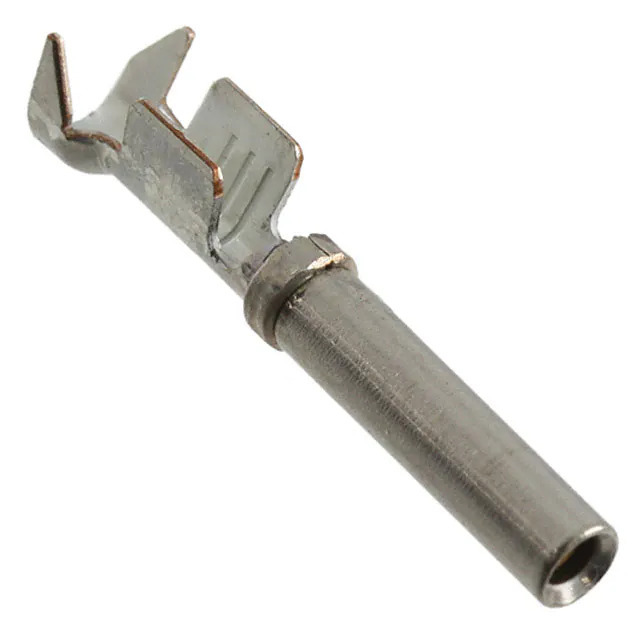

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Contacts
Mfr TE Connectivity AMP Connectors
Series AMPSEAL 16 HDSF
Package Bulk
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 14-18 AWG
Contact Finish Gold
Contact Finish Thickness -
Base Product Number 776299
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1363182-776299-1
Ultra Librarian 3D Model Ultra Librarian 776299-1 CAD Model

Description

The AMPSEAL 16 HDSF series from TE Connectivity AMP Connectors is a reliable solution for rectangular connector contacts.

  • Part Number: 1363182-776299-1
  • Contact Type: Socket, Stamped
  • Termination: Crimp
  • Wire Gauge: 14-18 AWG
  • Contact Finish: Gold
  • MSL Level: 1
  • Product Status: Active
  • Packaging: Bulk
