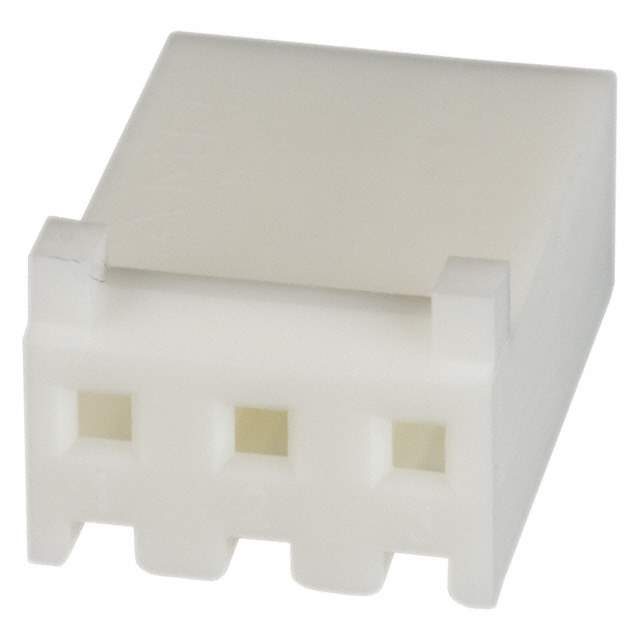

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series SL-156
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 3
Pitch 0.156" (3.96mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Features Polarizing Key
Note Contacts Not Included
Base Product Number 770849
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Names -770849-3-SI,7708493,770849-3-ND,2266-770849-3,A24112,-770849-3-CSI
Standard Package 500
Win Source Part Number 1150319-770849-3
Ultra Librarian 3D Model Ultra Librarian 770849-3 CAD Model

Description

This is a 770849-3 SL-156 series rectangular connector housing from TE Connectivity AMP Connectors.

  • Color: Natural
  • Contact Gender: Female Socket
  • Fastening Type: Locking Ramp
  • Connector Type: Receptacle
  • Polarization: Polarizing Key
  • Positions: 3
  • Pitch: 0.156" (3.96mm)
  • Rows: 1
  • Mounting Type: Free Hanging (In-Line)
  • Packaging: Bulk
  • Contact Termination: Crimp
  • Standard Package: 500 Units
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8538.90
