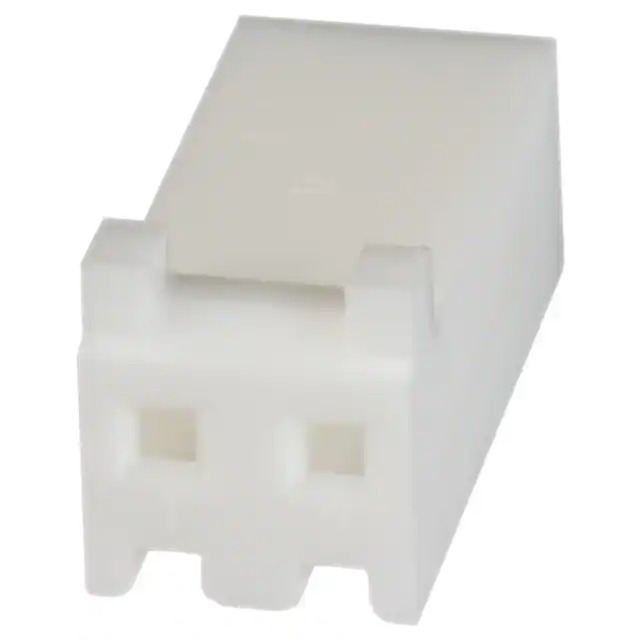

Category Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings
Mfr TE Connectivity AMP Connectors
Series SL-156
Package Bulk
Product Status Active
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 2
Pitch 0.156" (3.96mm)
Number of Rows 1
Row Spacing -
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Features Polarizing Key
Temperature Range - Operating -55°C ~ 105°C
Note Contacts Not Included
Base Product Number 770849
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Win Source Part Number 1365419-770849-2
Ultra Librarian 3D Model Ultra Librarian 770849-2 CAD Model

Description

The SL-156 series from TE Connectivity AMP Connectors is a rectangular connector housing designed for use in various electronic applications.

  • Features: Polarizing Key
  • Mounting Type: Free Hanging (In-Line)
  • Pitch: 0.156" (3.96mm)
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Number of Positions: 2
  • Number of Rows: 1
  • Fastening Type: Locking Ramp
  • Contacts Included: No
  • Operating Temperature: -55°C to 105°C
  • Product Status: Active
  • Packaging: Bulk
