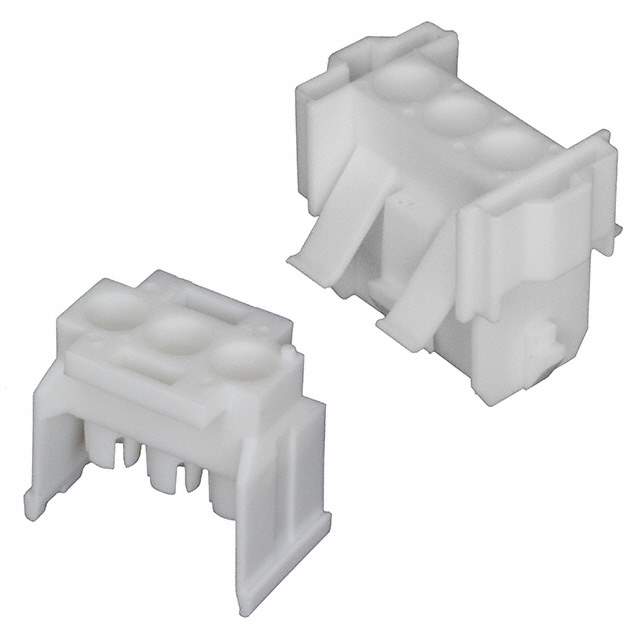

770025-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 21 Weeks
Features 3 Rectangular Connectors - Housings Receptacle White
Manufacturer TE Connectivity
Series Universal MATE-N-LOK II
Package Bulk
Mounting Panel Mount, Snap-In
Family Name 770025
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number 7700251, -770025-1-SI, -770025-1-CSI, A14248
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 908410-770025-1
Ultra Librarian 3D Model Ultra Librarian 770025-1 CAD Model

Description

The TE Connectivity 908410-770025-1 is a white rectangular connector housing that is part of the Universal MATE-N-LOK II series.

  • Color: White
  • Shape: Rectangular
  • Series: Universal MATE-N-LOK II
  • Package: Bulk
  • Mounting: Panel Mount, Snap-In
  • Family: 770025
  • Application: Connectors
  • Estimated Production Lead Time: 21 weeks
  • ECCN: EAR99
  • Quantity per Package: 1
  • MSL Level: 1 (Unlimited)
  • REACH Status: Vendor Undefined
  • HTSUS: 8538.90.6000
  • Other Part Numbers: 7700251, -770025-1-SI, -770025-1-CSI, A14248
