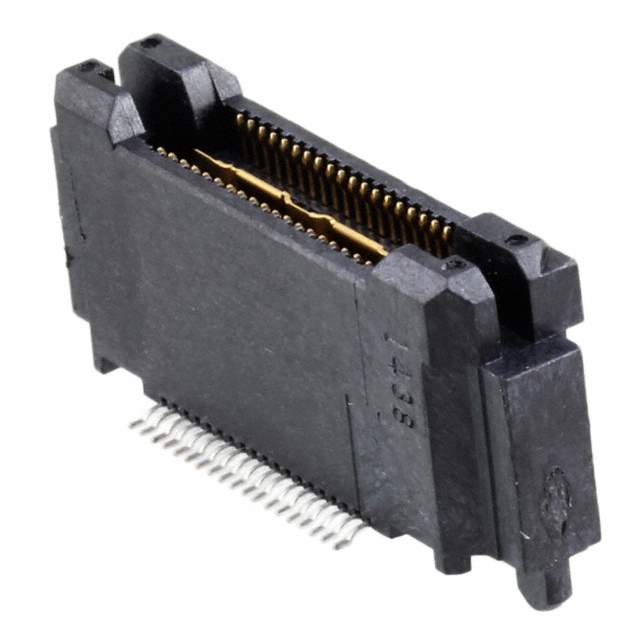

767003-9 Real Image
Same model may have multiple batches, images only for reference.

767003-9

Part No 767003-9
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN PLUG 38POS SMD GOLD / 38 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Datasheet
767003-9 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Product Status Obsolete
Connector Type Plug, Outer Shroud Contacts
Number of Positions 38
Pitch 0.025" (0.64mm)
Number of Rows 2
Mounting Surface Mount
Features Board Guide, Ground Bus (Plane)
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 11mm, 20mm
Height Above Board 0.419" (10.64mm)
Base Product Number 767003
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number -767003-9-SI,A115643,767003-9-ND
Standard Package 1,134
Win Source Part Number 1332836-767003-9
Ultra Librarian 3D Model Ultra Librarian 767003-9 CAD Model

Description

The 1332836-767003-9 from TE Connectivity AMP Connectors is a rectangular connector array for board-to-board mezzanine applications.

  • Manufacturer: TE Connectivity AMP Connectors
  • Application: Board-to-board mezzanine
  • Package: Tube
  • Standard Package: 1,134
  • Positions: 38
  • Pitch: 0.025" (0.64mm)
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Mated Stacking Heights: 11mm and 20mm
  • Height Above Board: 0.419" (10.64mm)
  • Mounting: Surface Mount
  • ECCN: EAR99
  • Status: Obsolete
  • RoHS: Non-compliant
