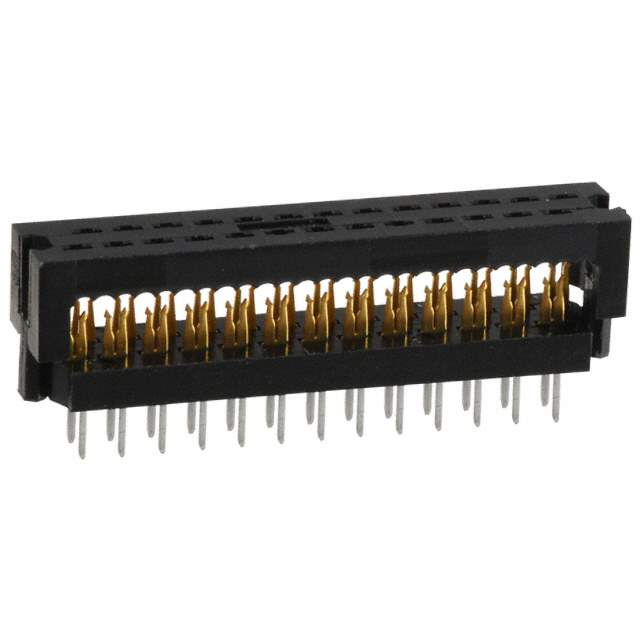

746610-4 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Board In, Direct Wire to Board
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Connector Type Ribbon Cable, DIP Header
Number of Positions 20
Cable Pitch 0.050" (1.27mm)
Board-Side Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Through Hole
Cable Termination IDC
Wire Gauge 26-28 AWG, Stranded; 26-30 AWG Solid
Features Feed Through
Contact Finish Tin-Lead
Contact Finish Thickness 100.0µin (2.54µm)
Color Black
Number of Positions Loaded All
Base Product Number 746610
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number ADM20T,-746610-4-SI,AMD20T-ND,746610-4-ND,AMD20T,7466104
Standard Package 50
Win Source Part Number 1334098-746610-4
Ultra Librarian 3D Model Ultra Librarian 746610-4 CAD Model

Description

The TE Connectivity AMP Connectors 1334098-746610-4 is a 20-position ribbon cable, DIP header board in, direct wire to board rectangular connector.

  • Positions: 20
  • Type: Ribbon Cable, DIP Header Board In, Direct Wire to Board
  • Color: Black
  • Feature: Feed Through
  • Loaded: All Positions
  • Number of Rows: 2
  • Row Spacing: 0.100" (2.54mm)
  • Contact Finish: Tin-Lead
  • Contact Finish Thickness: 100.0µin (2.54µm)
  • Wire Gauge: 26-28 AWG, Stranded; 26-30 AWG Solid
  • Termination: Insulation Displacement Connection (IDC)
  • Packaging: Tube
  • Standard Package: 50
  • Mounting: Through Hole
  • Cable Pitch: 0.050" (1.27mm)
  • Board-Side Pitch: 0.100" (2.54mm)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
  • ROHS3 Compliant: Yes
