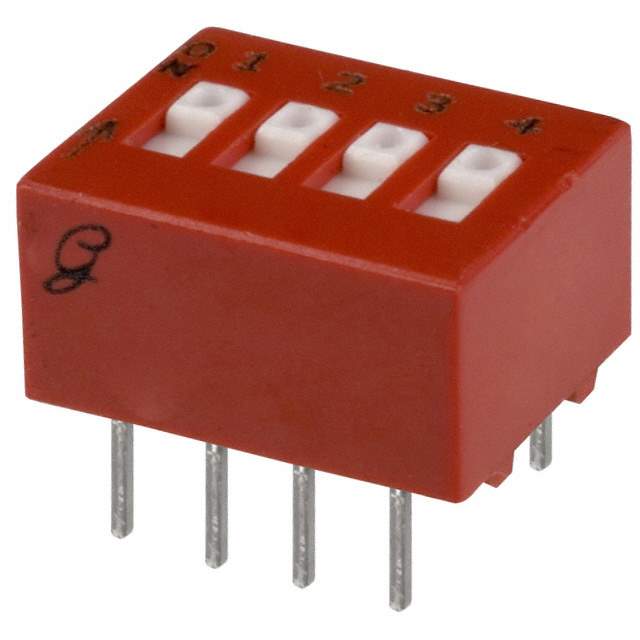

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Grayhill Inc.
Series 78
Package Tube
Circuit SPST
Number of Positions 4
Current Rating (Amps) 150mA
Voltage Rating 30VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.265" (6.73mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 0.480" (12.19mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number 78RB04
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2266-78RB04T,GH7205
Standard Package 21
Win Source Part Number 1180567-78RB04T
Ultra Librarian 3D Model Ultra Librarian 78RB04T CAD Model

Description

The 1180567-78RB04T is a SPST DIP switch from Grayhill Inc. 1180567-78RB04T is from Grayhill Inc..

  • Number of Positions: 4
  • Pitch: 0.100" (2.54mm), full
  • Mounting: through-hole
  • Termination Style: PC Pin
  • Voltage Rating: 30VDC
  • Electrical and Mechanical Life: 2,000 cycles
  • Actuator Type: slide (standard)
  • Actuator Level: flush, recessed
  • Washable: no
  • Operating Temperature Range: -40°C to 85°C
  • Material: thermoplastic material
  • Height Above Board: 0.265" (6.73mm)
  • Length: 0.480" (12.19mm)
  • Package: tube
  • Standard Package Contains: 21 pieces
