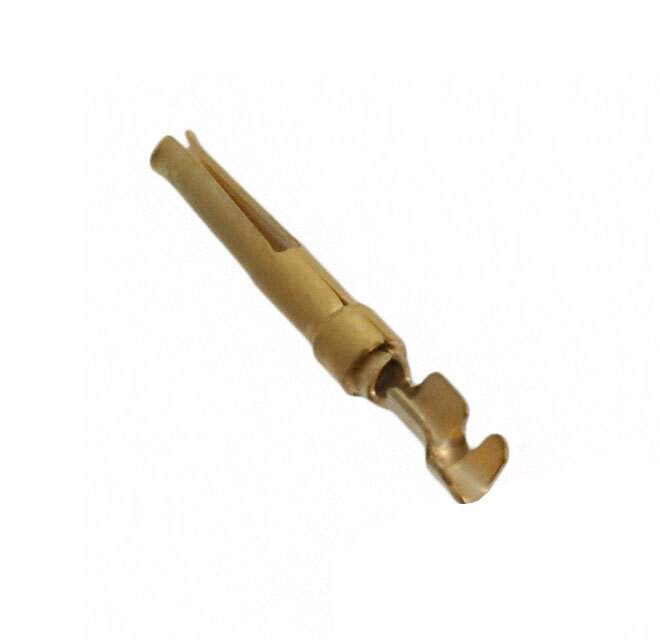

745253-6 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-20
Package Bulk
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-26 AWG
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 745253
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Names -745253-6-SI,2266-745253-6,A23722,7452536
Standard Package 1,000
Win Source Part Number 1146783-745253-6
Ultra Librarian 3D Model Ultra Librarian 745253-6 CAD Model

Description

The 745253-6 AMPLIMITE HDP-20 series socket contact is a stamped type component from TE Connectivity AMP Connectors.

  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Contact Termination: Crimped
  • Wire Gauge: 22-26 AWG
  • Contact Material: Phosphor Bronze
  • Application: General Purpose
  • Contact Type: Bidirectional
  • Voltage Breakdown (min): 20V
  • Voltage Clamping (max) @ Ipp: 29.2V
  • Power Peak Pulse: 400W
  • Mounting Type: SMD (SMT)
  • Package/Case: DO-214AC, SMA
  • Operating Temperature Range: -55°C ~ 150°C (TJ)
