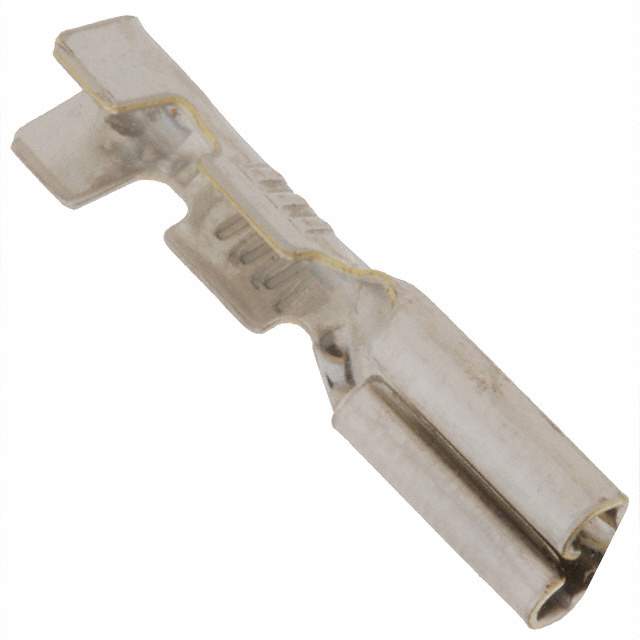

42068-1 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Reel - TR
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.250" (6.35mm)
Length - Overall 0.635" (16.13mm)
Termination Crimp
Wire Gauge 18-22 AWG
Insulation Non-Insulated
Mounting Free Hanging (In-Line)
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.060" ~ 0.100" (1.52mm ~ 2.54mm)
Base Product Number 42068
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27747,42068-1-ND,A27747CT,A27747TR,A27747-ND,2266-42068-1TR,-42068-1-SI,420681,-42068-1-CSI
Standard Package 15,000
Win Source Part Number 1333635-42068-1
Ultra Librarian 3D Model Ultra Librarian 42068-1 CAD Model

Description

This is a female connector manufactured by TE Connectivity AMP Connectors.

  • Win Source Part Number: 1333635-42068-1
  • Type: Quick Connect, Quick Disconnect
  • Insulation: Non-insulated
  • Termination: Crimp
  • Contact Material: Brass
  • Contact Finish: Tin
  • Wire Gauge: 18-22 AWG
  • Tab Width: 0.110 inches
  • Tab Thickness: 0.020 inches
  • Tab Length: 0.250 inches
  • Insulation Diameter: 0.060 inches to 0.100 inches
  • Overall Length: 0.635 inches
  • RoHS: Compliant
  • ECCN: EAR99
  • Standard Package: 15,000
  • Mounting Style: Free Hanging (in-line)
