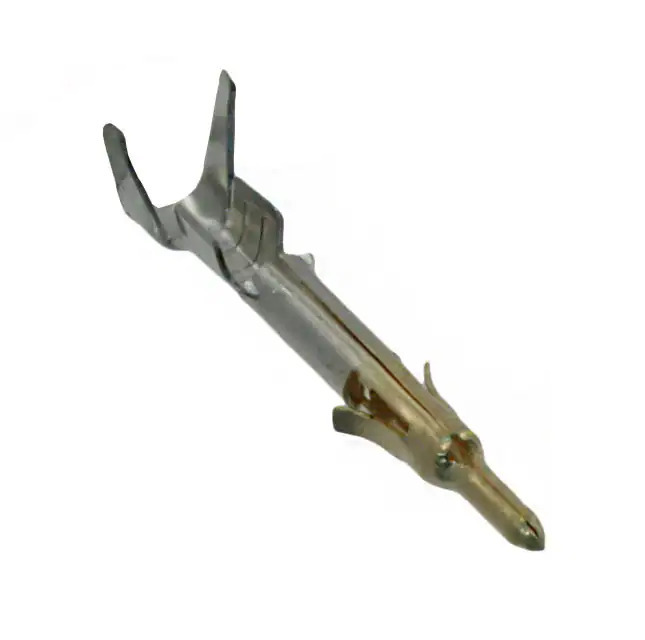

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series Mini-Universal MATE-N-LOK
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Pin
Contact Termination Crimp
Wire Gauge 18-22 AWG
Contact Material Brass
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 770903
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1377618-770903-3
Ultra Librarian 3D Model Ultra Librarian 770903-3 CAD Model

Description

The TE Connectivity AMP Connectors Mini-Universal MATE-N-LOK Pin is a versatile contact designed for multi-purpose applications.

  • Type: Stamped
  • Termination: Crimp
  • Wire Gauge: 18 ~ 22 AWG
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Material: Brass
