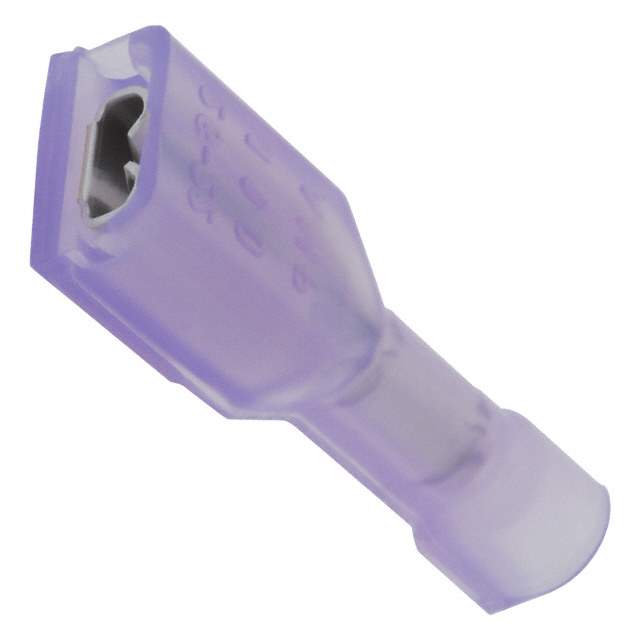

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Terminals>Quick Connects, Quick Disconnect Connectors
Manufacturer TE Connectivity AMP Connectors
Packaging Bulk
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm), 0.125" (3.18mm)
Tab Thickness 0.020" (0.51mm)
Length - Overall 0.735" (18.67mm)
Termination Crimp
Wire Gauge 22-26 AWG
Insulation Fully Insulated
Mounting Free Hanging (In-Line)
Color Violet
Contact Material Brass
Contact Finish Tin
Insulation Diameter 0.100" (2.54mm)
Base Product Number 520366
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number -4-16211-9818-SI,7-520366-2-ND,75203662,2266-7-520366-2,-4-16211-9818-SI-ND,-7-520366-2-SI,A27793
Standard Package 1,000
Win Source Part Number 1333846-7-520366-2
Ultra Librarian 3D Model Ultra Librarian 7-520366-2 CAD Model

Description

TE Connectivity AMP Connectors offers a fully insulated female quick disconnect connector.

  • Model: 1333846-7-520366-2
  • Termination: Crimp
  • Contact Finish: Tin
  • Wire Gauge: 22-26 AWG
  • Tab Width: 0.110" (2.79mm), 0.125" (3.18mm)
  • Tab Thickness: 0.020" (0.51mm)
  • Overall Length: 0.735" (18.67mm)
  • Insulation Diameter: 0.100" (2.54mm)
  • Mounting: Free Hanging (In-Line)
  • Standard Package: 1,000
  • Color: Violet
  • Contact Material: Brass
  • ROHS3 Compliant: Yes
