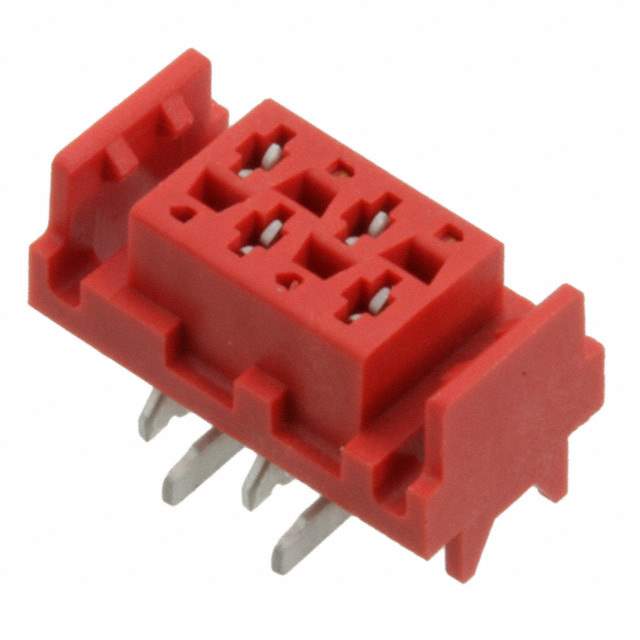

Same model may have multiple batches, images only for reference.

7-338069-4

Name: 7-338069-4
Brand: TE Connectivity
SKU: 1332049
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	7-338069-4
Manufacturer	TE Connectivity
Catalog	Rectangular Connectors
Description	CONN RCPT 4POS 0.1 TIN SMD / 4 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Tin
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	TE Connectivity AMP Connectors
Packaging	Reel - TR
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Surface Mount
Termination	Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Tin
Insulation Color	Red
Insulation Height	0.209" (5.30mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Pick and Place
Voltage Rating	100VDC
Applications	Automotive, General Purpose
Insulation Material	Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Material	Phosphor Bronze
Base Product Number	338069
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	-7-338069-4-LSI,73380694,2266-7-338069-4TR,-7-338069-4-CSI,A99435TR,-7-338069-4-SI,A99435DKR,A99435CT
Standard Package	900
Win Source Part Number	1332049-7-338069-4
Ultra Librarian 3D Model	Ultra Librarian 7-338069-4 CAD Model

Alternative Products

Description

The TE Connectivity AMP Connectors 1332049-7-338069-4 is a 4-position receptacle connector with a forked contact type.

Positions: 4
Contact Type: Forked
Pitch: 0.100 inches (2.54mm)
Applications: Board-to-Board, Cable Connections
Insulation Material: Polyamide (PA46), Nylon 4/6, Glass Filled
Flammability Rating: UL94 V-0
Voltage Rating: 100VDC
Operating Temperature: -40°C to 105°C
Suitable Applications: Automotive, General Purpose
Mounting Style: Surface Mount
Termination: Soldering
Packaging: Reel
Standard Package: 900
