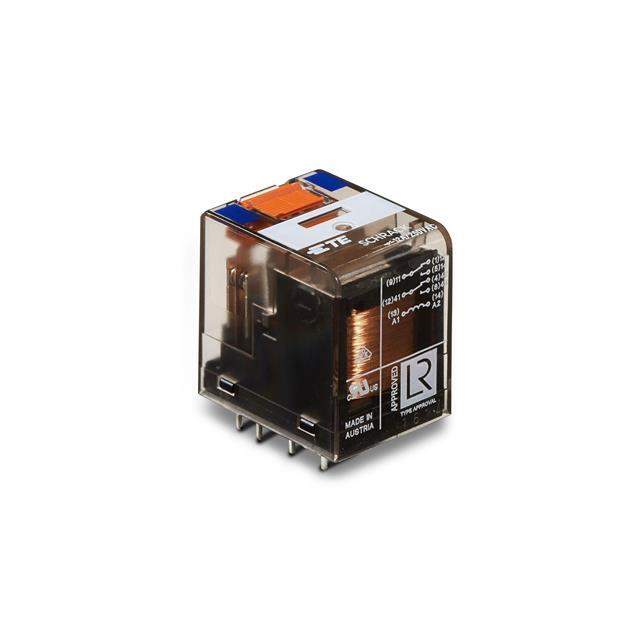

7-1415027-1 Real Image
Same model may have multiple batches, images only for reference.

7-1415027-1

Part No 7-1415027-1
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 12A 6V / General Purpose Relay DPDT (2 Form C) 6VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Power Relays, Over 2 Amps
Mfr TE Connectivity Potter & Brumfield Relays
Series PT, SCHRACK
Package Bulk
Mounting Type Through Hole
Coil Voltage 6VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 12 A
Switching Voltage 400VAC - Max
Coil Current 125 mA
Coil Type Non Latching
Features Test Button
Termination Style PC Pin
Seal Rating Sealed - Flux Protection
Coil Insulation Class F
Must Operate Voltage 4.5 VDC
Must Release Voltage 0.6 VDC
Operate Time 15 ms
Release Time 10 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 48 Ohms
Base Product Number 1415027
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.49.0080
Other Names PB2518,PT271006,7-1415027-1-ND
Standard Package 10
Win Source Part Number 991625-7-1415027-1
Ultra Librarian 3D Model Ultra Librarian 7-1415027-1 CAD Model

Description

The electronic component with Win Source Part Number 991625-7-1415027-1 is a power relay with a DPDT contact form.

  • Contact Form: DPDT
  • Contact Material: Silver Nickel (AgNi)
  • Package: Bulk
  • Coil Voltage: 6VDC
  • Coil Resistance: 48 Ohms
  • Contact Rating: 12A
  • Switching Voltage: 400VAC - Max
  • Mounting: Through-Hole
  • Temperature Range: -40°C to 70°C
